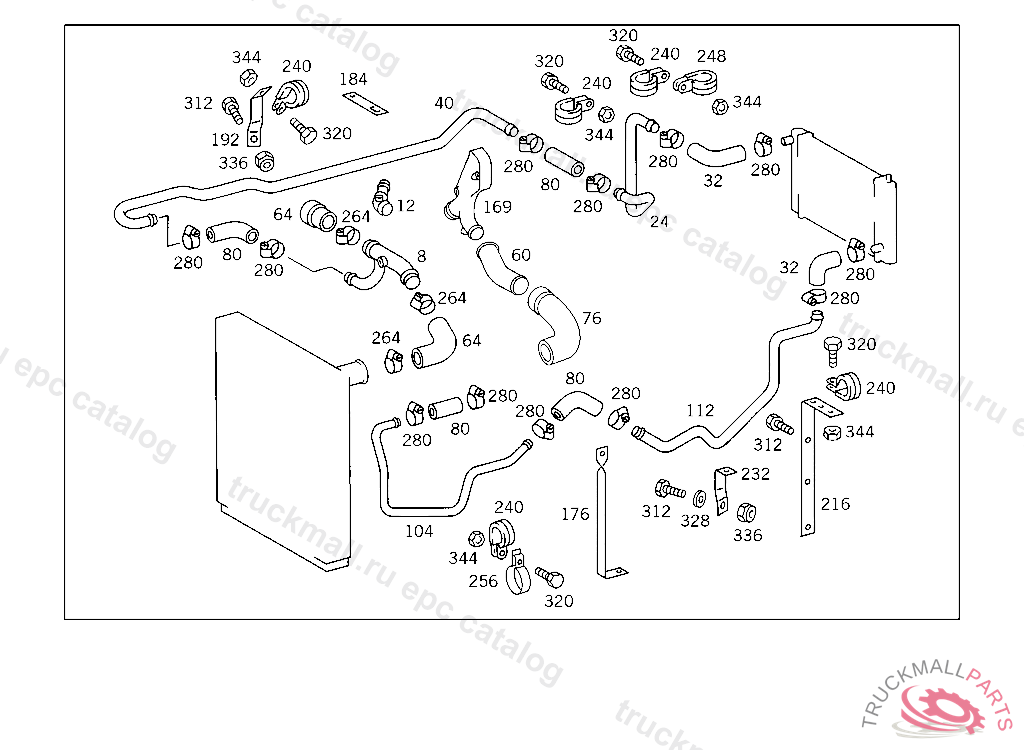

Поз.
Артикул
Описание
8
LINE FROM RADIATOR TO THERMOSTAT
12
LINE FEED TO ENGINE
24
COOLING WATER PIPE FEED LINE
32
HOSE ADDITIONAL RADIATOR
32
COOLING WATER LINE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6995018282
40
COOLING WATER PIPE FEED LINE
60
HOSE FEED AND RETURN LINE CONNECTION
64
HOSE FEED AND RETURN LINE CONNECTION
64
HOSE FROM RADIATOR TO THERMOSTAT, TO BE ADAPTED DURING ASSEMBLY
64
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6555011782
64
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6555011782
76
HOSE FROM RADIATOR TO THERMOSTAT
80
OIL LINE BETWEEN THE LINES, TO BE ADAPTED DURING ASSEMBLY
80
HOSE CONNECTING PIECE,AUXILIARY RADIATOR, ORDER BY THE METER
104
LINE FROM COOLING WATER LINE TO WATER PUMP
112
COOLING WATER PIPE RETURN LINE
164
OUTLET OIL COOLER CONNECTION
169
OUTLET
169
OUTLET
176
BRACKET FEED LINE TO THERMOSTAT, TO BE ADAPTED DURING ASSEMBLY
184
BRACKET AT CROSS MEMBER
192
BRACKET ON ENGINE,RIGHT
216
BRACKET CABLE HARNESS MOUNTING
232
BRACKET COOLING WATER LINE TO ENGINE,RIGHT
240
CLAMP LINE MOUNTING
240
CLAMP COOLING WATER PIPE TO ENGINE MOUNTING, FRONT LEFT
240
CLAMP LINE MOUNTING
248
CLAMP STAY TO BRACKET
256
CLAMP LINE MOUNTING
256
CLAMP , Replaced By: N000000001641
256
CLAMP , Replaced By: A9424310043
264
CLAMP , Replaced By: N000000000674
264
CLAMP HOSE 70-90X13 MM
280
CLAMP , Replaced By: N000000000670
312
SCREW EXHAUST PIPE TO BRACKET
312
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
312
SCREW BRACKET TO SIDE MEMBER
312
SCREW REAR EXHAUST PIPE TO MUFFLER
312
SCREW , Replaced By: N304017010002
320
SCREW , Replaced By: N304017008034
320
SCREW BRACKET TO CROSS CONNECTION STRUT
320
SCREW BRACKET TO BATTERY CASE
328
WASHER RADIATOR TO RUBBER MOUNTING
336
NUT BRACKET TO SUPPORT AND TO END PIECE
336
NUT STRAP TO BRACKET
336
NUT , Replaced By: N910113010000
344
NUT , Replaced By: N913004008001
344
NUT , Replaced By: N304032008006
344
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
344
NUT
999
CLAMP , Replaced By: N000000000667
999
CLAMP HOSE TO FITTING AND TO OIL TANK
999
CLAMP , Replaced By: N916017011001
999
CLAMP HOSE TO BRACKET 25/20,5 206397
999
CLAMP LINE MOUNTING
999
CLAMP LINE MOUNTING
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
SCREW PLUGROCKINGER,TYP 59 U150
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SEAL RING LINE CONNECTION
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
HOSE DE-AERATION LINE, ORDER BY THE METER
999
COOLING WATER LINE FROM EXPANSION TANK TO PIPE ELBOW
999
COOLING WATER LINE FROM EXPANSION TANK TO PIPE ELBOW
999
COOLING WATER LINE RETURN LINE
999
COOLING WATER LINE FEED LINE
999
BREATHER PIPE FROM EXPANSION TANK TO PIPE ELBOW
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
BREATHER PIPE CONNECTION TO REAR COOLING SYSTEM
999
LINE DE-AERATION LINE
999
PIPE ELBOW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6555011556
999
LINE FEED LINE
999
BRACKET CABLE HARNESS MOUNTING
999
PIPE ELBOW AT WATER PUMP,5 510518
999
HOSE BRAKE VALVE,CONNECTION: "30"
999
SPACER TUBE VALVE TO CROSS MEMBER
999
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
999
COOLING WATER PIPE RETURN LINE
999
COOLING WATER PIPE RETURN LINE
999
COOLING WATER LINE FROM EXPANSION TANK TO PIPE ELBOW
999
COOLING WATER LINE RETURN LINE
999
COOLING WATER PIPE FEED LINE
999
COOLING WATER LINE FEED LINE
999
COOLING WATER PIPE FEED LINE
999
COOLING WATER PIPE FEED LINE
999
COOLING WATER PIPE FEED LINE
999
COOLING WATER PIPE FROM EXPANSION TANK TO PIPE ELBOW
999
COOLING WATER PIPE FROM EXPANSION TANK TO PIPE ELBOW
999
COOLING WATER PIPE RETURN LINE
999
COOLING WATER PIPE FROM EXPANSION TANK TO PIPE ELBOW
999
COOLING WATER PIPE FEED LINE
999
HOSE DE-AERATION LINE, ORDER BY THE METER, Replaced By: A9575011982
