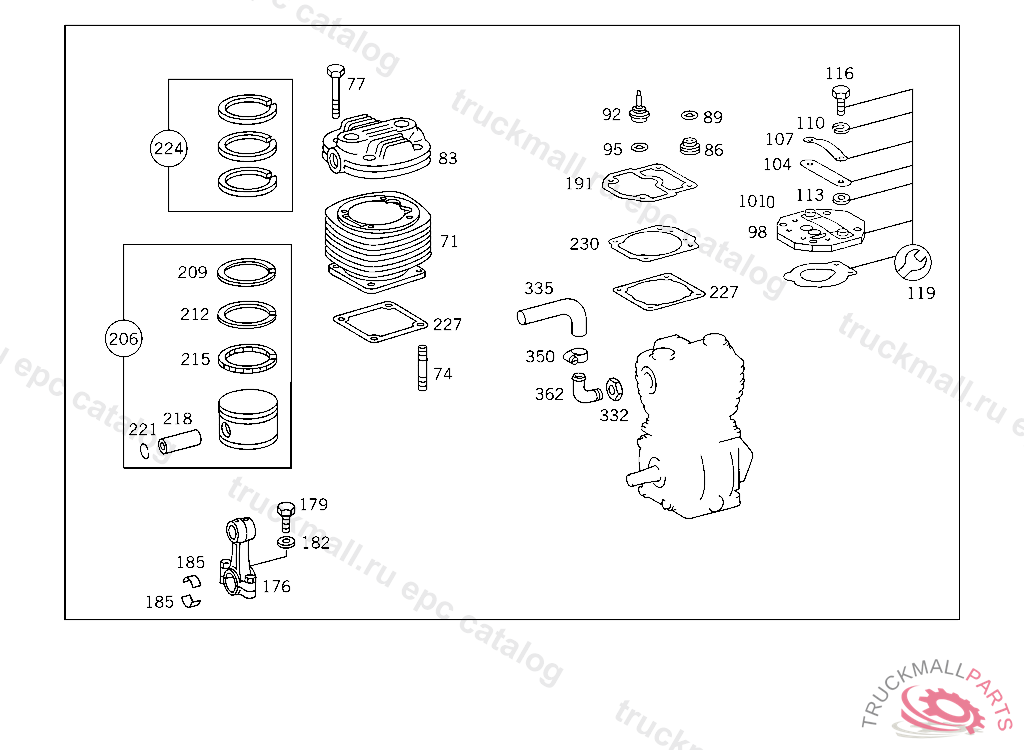

Поз.
Артикул
Описание
71
CYLINDER LINERTO 003 131 97 01
74
STUD BOLTTO 001 131 52 01
77
SCREW VALVE TO BRACKET, Replaced By: N304014008002
77
SCREW VALVE TO BRACKET
77
SCREW BRACKET TO BELL HOUSING
83
CYLINDER HEAD COMPLETE
83
CYLINDER HEADTO 004 131 03 01
83
CYLINDER HEADTO 003 131 59 01
83
CYLINDER HEAD , Replaced By: A0001303119
83
CYLINDER HEADTO 001 131 52 01
86
VALVE
89
SEAL RING
92
VALVE
95
SEAL RING
98
VALVE DISC VALVE TO 001 131 52 01
101
GROOVED PIN
104
VALVE DISCTO 002 131 36 01
104
VALVE DISC , Replaced By: A0001314631
107
VALVE RETAINER (DISC VALVE) TO 000 130 13 20
110
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
113
WASHER
116
SCREW COVER PLATE TO COVER PLATE M 6 X 12
116
SCREW , Replaced By: N304017006018
119
VALVE. REPAIR KIT , Replaced By: A0001307915
119
GASKET KIT , Replaced By: A0001307320
119
GASKET KIT DISC VALVE TO 004 131 03 01
119
REPAIR KIT PARTS KIT TO 003 131 59 01
119
VALVE PARTS KIT TO 004 131 03 01
176
CONNECTING ROD LESS BEARING SHELLS TO 376 131 74 01
176
CONNECTING RODTO 003 131 59 01
176
CONNECTING ROD WITH BEARING SHELLS TO 001 131 52 01
176
CONNECTING ROD , Replaced By: A0001312617
179
SCREW RELAY VALVE TO BRACKET
182
LOCK CONNECTING ROD COVER TO CONNECTING ROD TO 000 130 19 16
185
BEARING SHELLTO 003 131 48 01,004 131 58 01
191
GASKET , Replaced By: A0011317280
191
GASKET VALVE DISC,CYLINDER COVER TO 001 131 52 01
206
PISTONTO 376 131 74 01
206
PISTONTO 003 131 59 01
206
PISTONTO 001 131 52 01
209
PISTON RING GROOVE I 2.5 MMTO 000 130 11 17
212
PISTON RING GROOVE II TO 001 131 52 01
215
PISTON RING GROOVE III TO 001 131 52 01
218
PISTON PINTO 001 131 52 01
221
LOCK RINGWABCO,5 433388
224
PISTON RING
224
PISTON RING PARTS KIT TO 003 131 59 01
227
GASKET
227
GASKET CYLINDER LINER TO AIR COMPRESSOR HOUSING 0.50 MM,TO 001 131 52 01
227
GASKET , Replaced By: A0011317080
227
GASKET , Replaced By: A0011315680
227
GASKET CYLINDER HEAD TO CYLINDER LINER TO 376 131 74 01
230
GASKET
230
GASKET , Replaced By: A0011314380
230
GASKET , Replaced By: A0011317180
230
GASKET , Replaced By: A4421310980
230
GASKETWABCO
230
GASKETTO 001 131 52 01
332
NUT
335
HOSE AIR COMPRESSOR
335
HOSE
335
HOSE COOLING WATER INLET FOR AIR COMPRESSOR
350
CLAMP , Replaced By: N000000000667
350
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
362
FITTING AIR COMPRESSOR
999
SEAL RING VALVE
999
HOUSING
999
COVER , Replaced By: A0004666505
999
COVERTO 000 460 23 80
999
SCREW PLUG CRANKCASE,AIR COMPRESSOR
999
PIPE SOCKET
999
FITTING AIR COMPRESSOR
