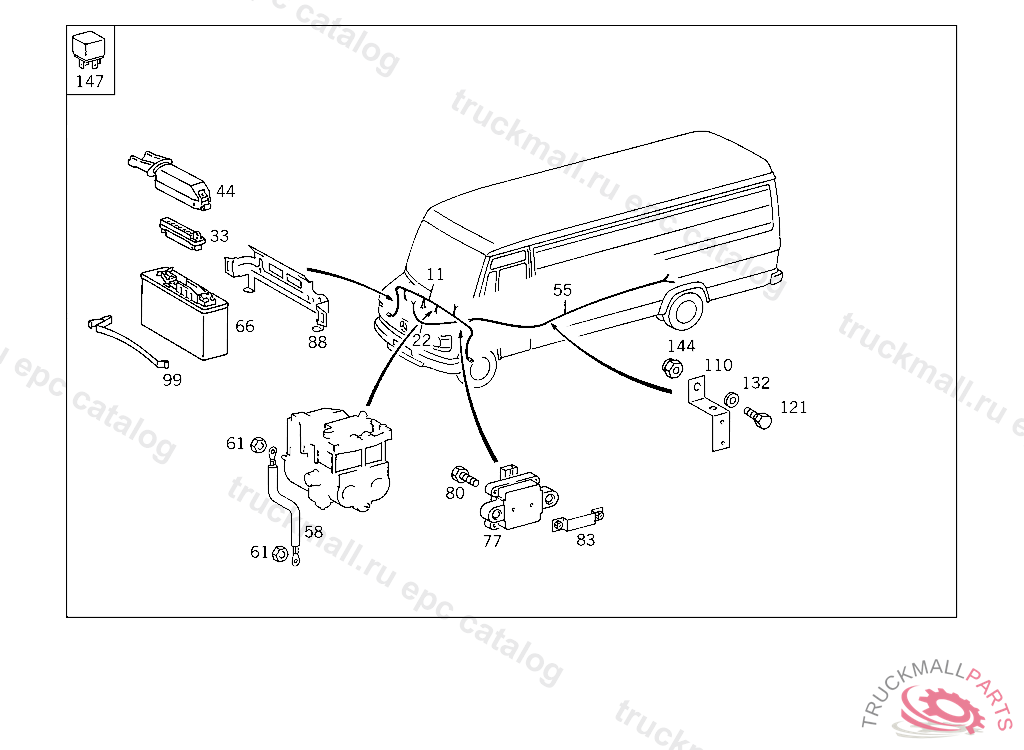

Поз.
Артикул
Описание
11
ELECTRIC CABLE FROM CONTROL UNIT TO HYDRAULIC UNIT AND TO SENSOR PLUG CONNECTIONS
11
ELECTRIC CABLE FROM CONTROL UNIT TO HYDRAULIC UNIT AND TO SENSOR PLUG CONNECTIONS
11
ELECTRIC CABLE FROM CONTROL UNIT TO HYDRAULIC UNIT AND TO SENSOR PLUG CONNECTIONS
11
ELECTRIC CABLE FROM CONTROL UNIT TO HYDRAULIC UNIT AND TO SENSOR PLUG CONNECTIONS
11
ELECTRIC CABLE FROM CONTROL UNIT TO HYDRAULIC UNIT AND TO SENSOR PLUG CONNECTIONS
11
ELECTRIC CABLE FROM CONTROL UNIT TO HYDRAULIC UNIT AND TO SENSOR PLUG CONNECTIONS
11
ELECTRIC CABLE FROM CONTROL UNIT TO HYDRAULIC UNIT AND TO SENSOR PLUG CONNECTIONS
22
ELECTRIC CABLE FROM CHASSIS/CAB PLUG CONNECTION TO SOLENOID VALVES
33
ELECTRIC CABLE FROM CHASSIS/CAB PLUG CONNECTION TO SOLENOID VALVES
44
SHELL TYPE HANDLE 35-POLE
55
CABLE HARNESS REAR LEFT
55
ELECTRIC CABLE , Replaced By: A6015403109, +001A6015403209, +001A0025451228
58
GROUND STRAP HYDRAULIC UNIT
61
NUT , Replaced By: N304032005005
61
NUT SPRING-LOADED PUSH ROD
61
NUT IN CASE OF SUBSEQUENT INSTALLATION
66
CONTROL UNIT ABS CONTROL UNIT
66
CONTROL UNIT
66
CONTROL UNIT
77
SENDER UNITG 12
77
SENDER UNIT , Replaced By: A0115427117
80
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
83
BRACKET SENDER UNIT
88
BRACKET CONTROL UNIT
99
BRACKET
110
BRACKET SENSOR CABLE
121
SCREW BRACKET TO CONSOLE
132
WASHER BRACKET TO COVERING
132
WASHER , Replaced By: N009021010209
144
NUT CROSS MEMBER TO SIDE MEMBERS
147
RELAYA33
147
RELAY , Replaced By: A0035459605
147
RELAY , Replaced By: A0035459605
147
RELAYA33, Replaced By: A0009822123
