Поз.
Артикул
Описание

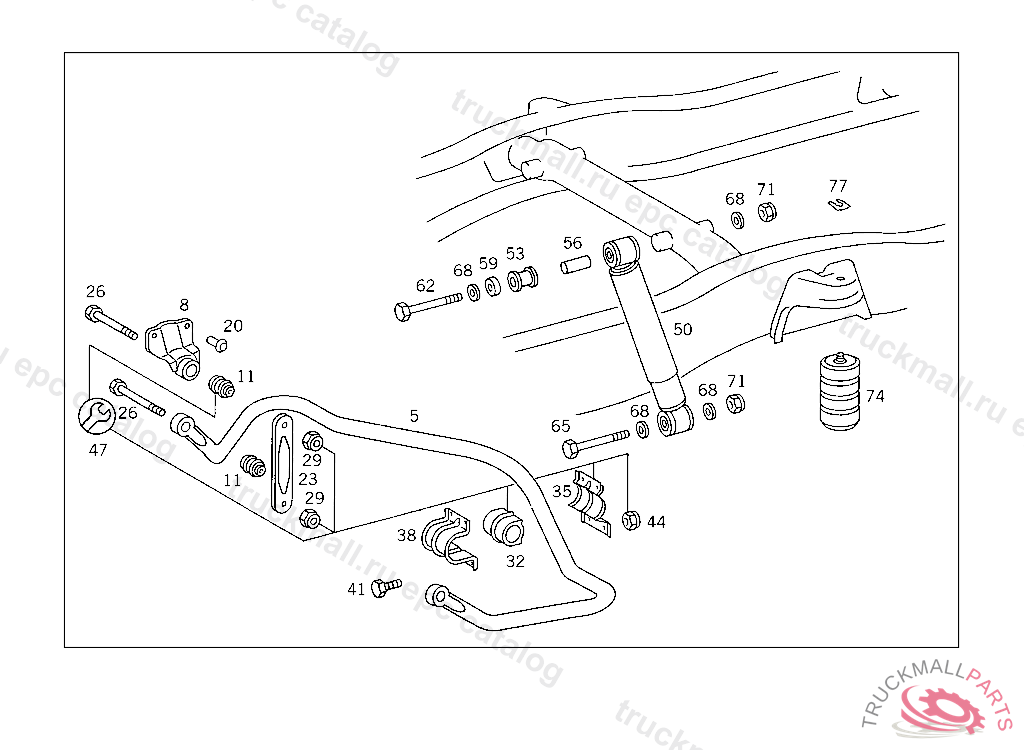

5
TORSION BAR ,D 054472, Replaced By: A6883208211
5
TORSION BAR46 MM, N 000001 P 108936
8
CONSOLE TORSION BAR,LEFT, 850733 N 000001 P 000001
8
CONSOLE RIGHT,D 054472
8
CONSOLE RIGHT, 850733 N 000001 P 000001 N 000000 P 108935
8
CONSOLE LEFT,D 054472
11
BEARING BRACKET TO SHACKLE
11
BEARING TORSION BAR BEARING
20
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
20
RIVET10X34 MM, TO BE ADAPTED DURING ASSEMBLY
20
RIVET REINFORCEMENT TO SIDE MEMBER
23
SHACKLE TORSION BAR TO CONSOLE, N 000001 P 136823
23
SHACKLE
26
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
26
HEXAGON HEAD BOLT. SCREW REINFORCEMENT TO SIDE MEMBER M 12X55
29
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
32
RUBBER MOUNTING TORSION BAR 46 MM, N 000001 P 108936
32
RUBBER MOUNTING I.D., 41 MM
35
INTERMEDIATE PIECE TORSION BAR TO REAR AXLE
38
BRACKET TORSION BAR TO REAR AXLE
38
BRACKET TORSION BAR TO REAR AXLE, N 000001 P 108936
38
BRACKET , 861569 N 000000 P 000000, Replaced By: A6673261440, +008N000933008153
41
SCREW CABLE HARNESS MOUNTING
41
SCREW SPRING BRACKET TO FRAME
41
SCREW BRACKET TO CROSS CONNECTION STRUT
44
NUT STRAP TO BRACKET
47
REPAIR KIT TORSION BAR,REAR, N 000000 P 108935
47
REPAIR KIT TORSION BAR,REAR 46 MM, N 000001 P 108936
47
REPAIR KIT , Replaced By: A6703201211
50
SHOCK ABSORBER REAR AXLE, UP TO IDENT NO.813314, INAPPLICABLE TO SPECIAL AMBULANCE/EMERGENCY DOCTOR'S VEHICLE N 000000 P 000000
50
SHOCK ABSORBER REAR AXLE, 813315 N 000001 P 000001
53
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
53
RUBBER MOUNTING TOP AND BOTTOM TO 673 323 00 00
56
BUSHING BOTTOM TO 673 323 00 00,675 323 06 00
56
BUSHING BOTTOM TO 673 323 10 00
59
SPACER TUBE TOP, UP TO IDENT NO.P055122, FROM IDENT NO. SEE STANDARD VERDION
62
SCREW BEARING TO TRANSFER CASE M 14X140
62
SCREW APPARATUS SUPPORT M 14X1.5X165
65
SCREW AT CROSS MEMBER M 14X110
65
SCREW PARTICLE FILTER
68
WASHER HELPER SPRING BRACKET TO SIDE MEMBER,5 201989 UP TO IDENT NO. 5 319597,FROM IDENT NO. SEE STANDARD VERSION
68
WASHER SHOCK ABSORBER TO FRONT AXLE
71
NUT , Replaced By: N910113014001
71
NUT BRACKET TO SIDE MEMBER
74
RUBBER SPRING
74
RUBBER SPRING REAR SPRING STOP
77
BRACKET RUBBER SPRING TO BRACKET
999
CONSOLE LEFT, N 000001 P 108936
999
CONSOLE TORSION BAR,RIGHT, N 000001 P 108936
