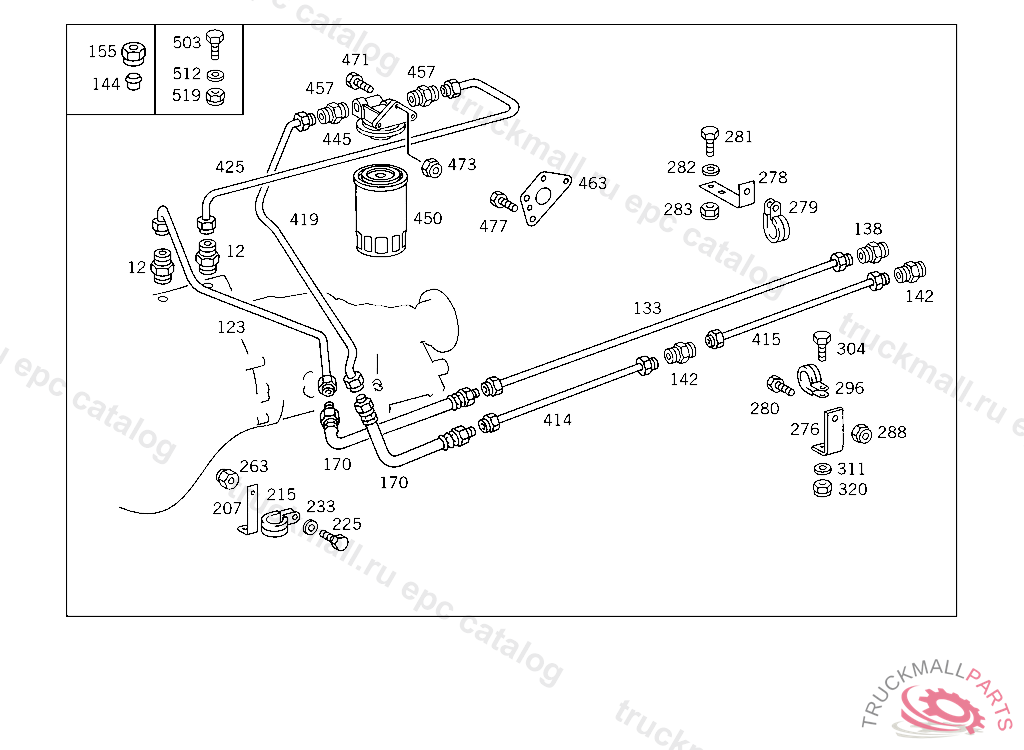

Поз.
Артикул
Описание
12
FITTING OIL LINE TO TRANSMISSION
123
LINE FEED, FROM TRANSMISSION TO HOSE
123
LINE ,N 008143, Replaced By: A6682702996, +001A6682702141, +001A6689971182
133
LINE ,N 008143, Replaced By: A6682703096, +001A6682702141, +001A6689971182
133
LINE FEED, OIL COOLER
133
LINE FEED, OIL COOLER
133
LINE FEED, OIL COOLER
133
LINE FEED, OIL COOLER
133
LINE FEED, OIL COOLER,N 008144N 013503
138
CONNECTION FITTING LINE CONNECTIONS
138
CONNECTION FITTING , Replaced By: N003902018002
142
CONNECTION FITTING , Replaced By: N003902018002
142
CONNECTION FITTING LINE CONNECTIONS
144
GLAND , Replaced By: A0019901167
144
SEAL CONE LINE MOUNTING
155
UNION NUT LINE MOUNTING
170
HOSE FEED AND RETURN LINES TO OIL COOLER,N 008143
170
HOSE FEED
207
BRACKET , NOT USED
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
225
SCREW , WITH DIESEL ENGINE
225
SCREW AT SHIFT LEVER M 8 X 45,P 234011
225
SCREW BRACKET TO CROSS CONNECTION STRUT
233
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
233
WASHER EXHAUST MUFFLER TO STRAP
263
NUT HEATING PIPE TO BRACKET
263
NUT STRAP TO BRACKET
276
BRACKET
276
BRACKET , Replaced By: A6682711040, +001N000125006421, +001N913002006005
278
BRACKET LINE MOUNTING,5 7245845 801938
279
CLAMP CABLE HARNESS MOUNTING
279
CLAMP , Replaced By: N000000001045
279
CLAMP , Replaced By: N916016010211
280
SCREW STRUT TO CROSS MEMBER M 10X25
281
SCREW STRUT TO CROSS MEMBER M 10X25
281
SCREW LICENSE PLATE TO BRACKET
282
WASHER COMPRESSED AIR LINE TO BRACKET
282
WASHER , Replaced By: N009021006208
283
NUT , Replaced By: N913002006009
283
NUT OIL TANK TO BRACKET
283
NUT STRAP TO BRACKET
288
NUT STRAP TO BRACKET
288
NUT CROSS MEMBER TO SIDE MEMBERS
296
CLAMP BRAKE HOSE BRACKET
304
SCREW LICENSE PLATE TO BRACKET
304
SCREW , WITH DIESEL ENGINE
311
WASHER SWITCH TO FIRE WALL
320
NUT COMPRESSED AIR LINE MOUNTING,5 908243
414
LINE RETURN, FROM OIL COOLER TO HOSE
414
LINE RETURN, FROM OIL COOLER TO HOSE
414
LINE RETURN, FROM OIL COOLER TO HOSE
415
LINE OIL RETURN LINE,REAR
419
LINE RETURN, FROM HOSE TO OIL FILTER
419
LINE , Replaced By: A6682703296, +001A6682702141, +001A6689971182
425
LINE , Replaced By: A6682703395, +001A6682702141, +001A6689971182
425
LINE RETURN, FROM OIL FILTER TO TRANSMISSION
445
COVER , Replaced By: A3762700098
445
FILTER OIL FILTER
450
FILTER (OIL FILTER), Replaced By: A0002773295
450
FILTER , Replaced By: A3762700498
457
FITTING OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
463
BRACKET , Replaced By: A6682712640
463
BRACKET OIL FILTER TO TRANSMISSION CASE
471
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
473
NUT STRAP TO BRACKET
477
SCREW BRACKET TO TRANSMISSION
503
SCREW , WITH DIESEL ENGINE
512
WASHER SWITCH TO FIRE WALL
519
NUT OIL TANK TO BRACKET
519
NUT , Replaced By: N913002006009
999
BRACKET OIL LINES TO FRAME SIDE MEMBERS,N 013504
999
SPACER TUBE BRACKET TO TRANSMISSION
