Главная
›
Mercedes
›
VAN
›
809 D
›
670.061
›
31 FRAME
›
001 TOW BAR COUPLING
Mercedes N308676014008 - Болт
809 D 670.061

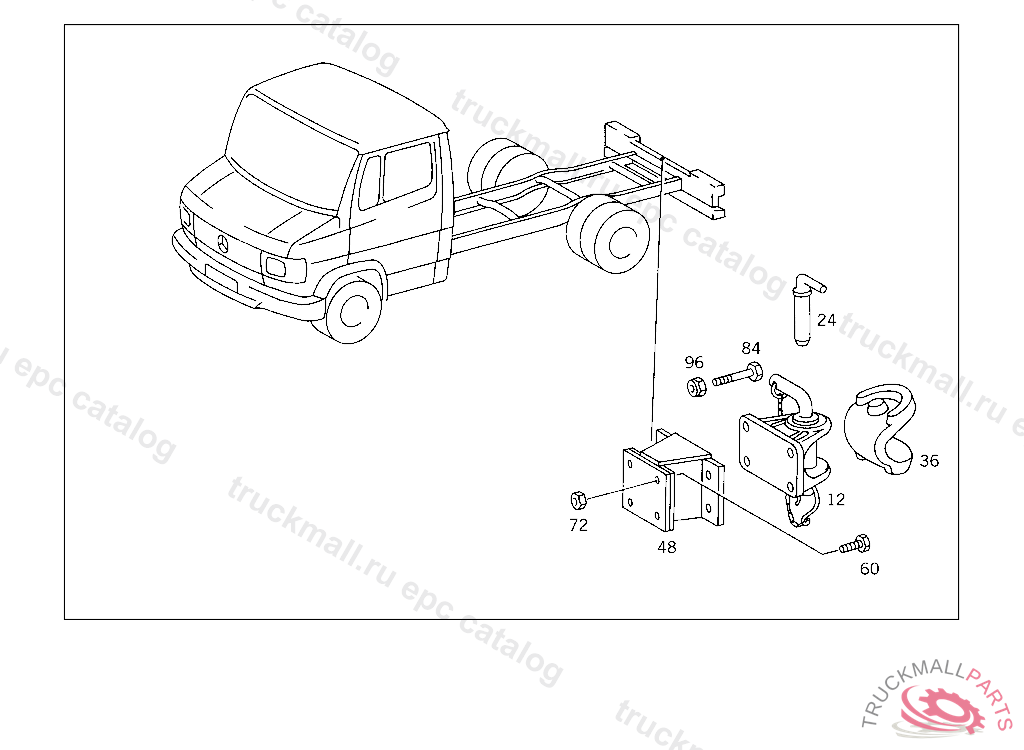

31 FRAME - 001 TOW BAR COUPLING
Поз.
Артикул
Описание
12
A3018950005
COUPLING (TOW BAR COUPLING) ROCKINGER TYP SK 4
24
A0008950115
PIN
36
A0008950009
COVERING TRAILER COUPLING
48
A6683100058
CONSOLE TOW BAR COUPLING
48
A6683100158
CONSOLE TOW BAR COUPLING
60
N910107010044
SCREW CONSOLE TO FRAME M 10X45 MM
60
N304017010038
HEXAGON HEAD BOLT BRACKET TO BRACKET
60
N914141010124
SCREW , Replaced By: N910107010044
72
N910113010001
NUT CROSS MEMBER TO SIDE MEMBERS
84
N308676014008
SCREW MOUNTING TO CONSOLE M 14X35
96
N910113014001
NUT BRACKET TO SIDE MEMBER
96
N913004014002
NUT , Replaced By: N910113014001
