Mercedes N910106014013 - Болт

811 D 670.303

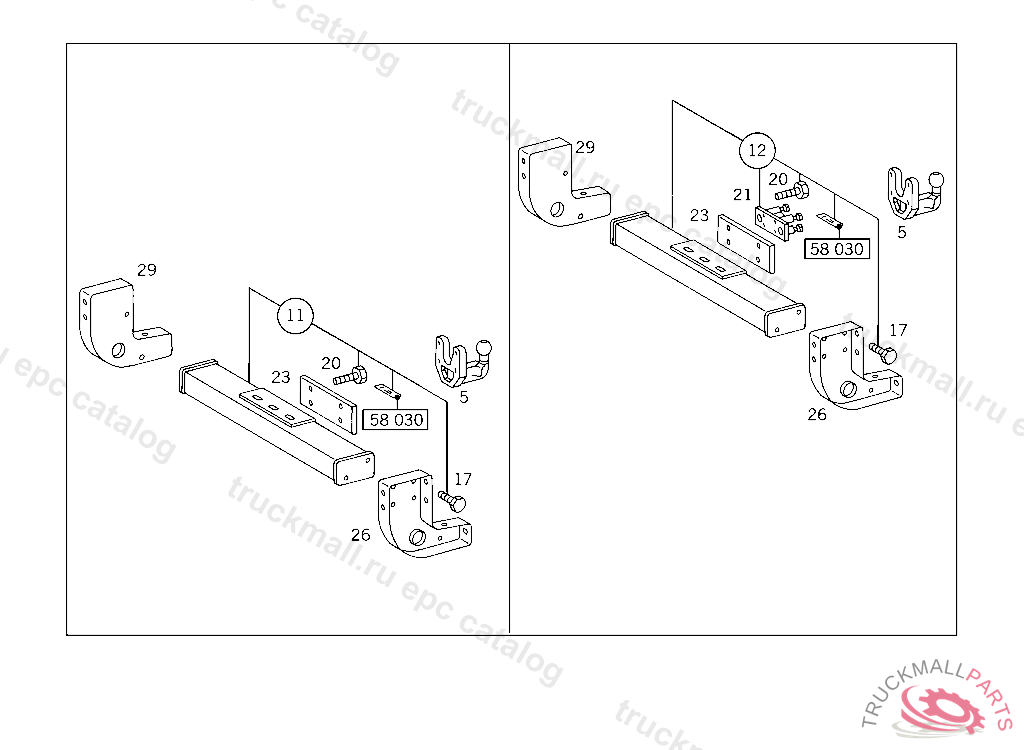

31 FRAME - 420 TRAILER COUPLING

Поз.
Артикул
Описание
5
A6683150599
TRAILER COUPLING (BALL-HEAD-TYPE COUPLING)
12
A0003150743
CROSS STRUT PARTS KIT,ONLY USED WITH UNDERRUN PROTECION
17
N910106014013
SCREW BRACKET TO CROSS MEMBER M 14X30
20
N910106010040
SCREW BALL-HEAD-TYPE COUPLING TO CROSS MEMBER M 10X110
21
A6683150056
SHIM AT BALL HEAD
23
A0003151521
PLATE BALL-HEAD-TYPE COUPLING TO CROSS MEMBER
26
A6685250239
BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY DELIVER ADDITIONALLY: 4X 305 990 04 40, 4X 668 990 00 90, WITH 15-MM-DIA. BORE
29
A6685250339
BRACKET RIGHT, ONLY USED WITH UNDERRUN PROTECION
