Поз.
Артикул
Описание

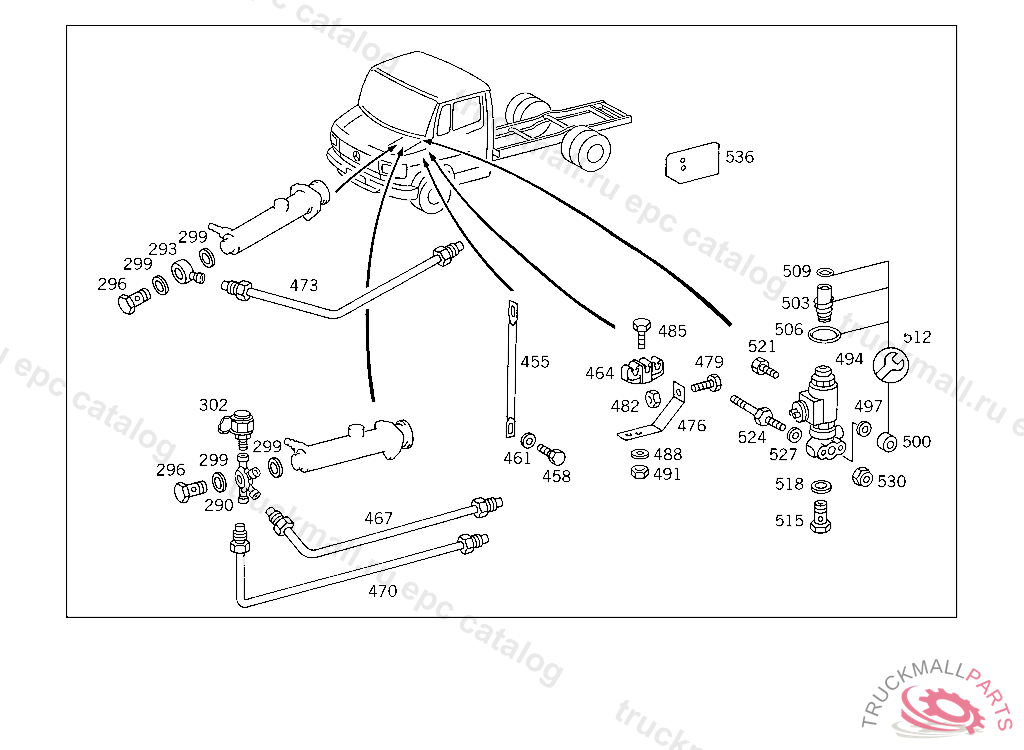

290
DISTRIBUTOR BRAKE LINE TO BRAKE MASTER CYLINDER
290
DISTRIBUTOR BRAKE LINE TO BRAKE MASTER CYLINDER
293
CONNECTOR BRAKE MASTER CYLINDER
296
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
299
SEAL RINGTO 000 553 03 05,000 553 18 05,
302
TEST CONNECTION , Replaced By: A0004318731
302
TEST CONNECTION AT DISTRIBUTOR
455
WEB
455
WEB
458
HEXAGON HEAD BOLT BELLOWS TO BRACKET M8X12
461
WASHER EXHAUST MUFFLER TO STRAP
464
BRACKET
467
LINE FROM ADAPTER FITTING TO DISTRIBUTOR,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
467
LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
470
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
470
LINE FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE, 000 193701 003 097469 086 006508 093 007717 102,103 209243 183 013349 190 020074 193 000014 200 006559 283 001514 INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
473
LINE FROM ADAPTER FITTING TO DISTRIBUTOR,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
473
LINE FROM VALVE TO LEFT REAR WHEEL 3560 MM
476
BRACKET , Replaced By: A6684291340
476
BRACKET LINE MOUNTING
479
SCREW , Replaced By: A1249902101
479
SCREW BRACKET TO THROTTLE HOUSING
482
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
485
SCREW CABLE HARNESS MOUNTING
488
WASHER EXHAUST MUFFLER TO STRAP
491
NUT STRAP TO BRACKET
494
VALVE , Replaced By: A0049975736
494
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
494
VALVE (3/2-WAY SOLENOID VALVE) EKS
497
SEAL RINGTO 000 429 24 30
500
SEAL RING VALVE TO VALVE
503
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
506
SEAL RINGWABCO
509
SEAL RING24X2 MM
512
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
515
HOLLOW SCREW HEATING CONNECTION
518
SEAL RING LINE CONNECTION
521
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
524
PIN VALVE TO SIDE MEMBER
527
WASHER EXHAUST MUFFLER TO STRAP
530
NUT STRAP TO BRACKET
536
ANGLE PROPELLER SHAFT BEARING
999
LOCK RING DRIVE SHAFT BEARING
999
BRACKET
999
BRAKE VALVE (SERVICE BRAKE VALVE) GRAU
999
BUSHINGTO 0014316914,0014313414
999
COVERING
