Главная
›
Mercedes
›
VAN
›
811 D
›
670.303
›

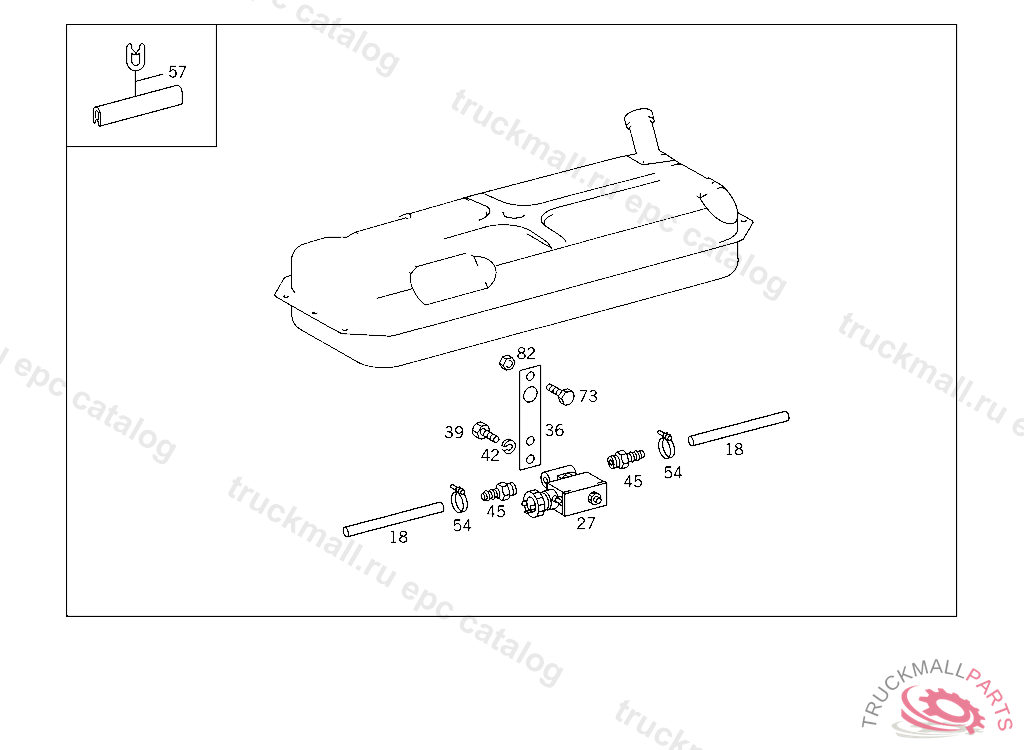

47 FUEL SYSTEM
›
001 FUEL SHUT-OFF VALVE
Mercedes N000933005058 - Болт
811 D 670.303
47 FUEL SYSTEM - 001 FUEL SHUT-OFF VALVE
Поз.
Артикул
Описание
18
N916030000527
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
27
A0004761932
VALVE FUEL
36
A6674760836
BRACKET , Replaced By: A6744320019
36
A6744320019
BASE SUPPORT TO FRAME
39
N000933005058
SCREW IN CASE OF SUBSEQUENT INSTALLATION
42
N912004005100
LOCK WASHER T-FITTING TO BRACKET
45
A6739970372
FITTING HOSE TO VALVE
54
N916002012100
CLAMP LINE CONNECTION
57
A0019878272
EDGE GUARD SECTION , Replaced By: A0019877625
57
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
73
N304017010040
SCREW STRUT TO CROSS MEMBER M 10X25
82
N910113010001
NUT CROSS MEMBER TO SIDE MEMBERS
