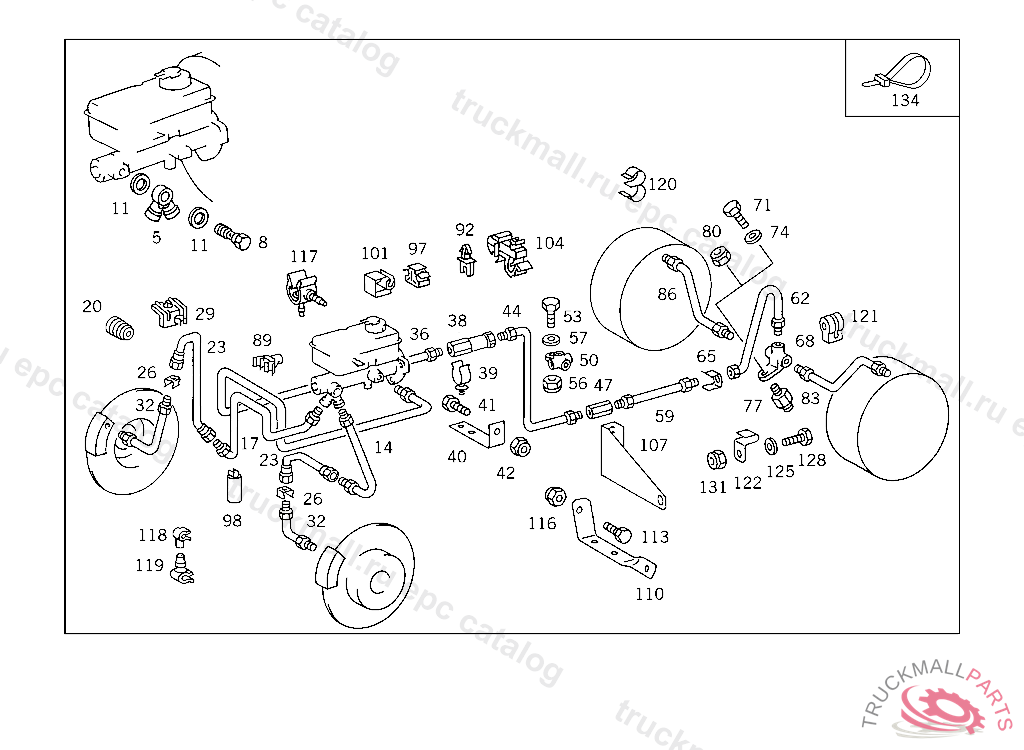

Поз.
Артикул
Описание
5
DISTRIBUTOR BRAKE LINE TO BRAKE MASTER CYLINDER
5
DISTRIBUTOR MASTER CYLINDER,FRONT
5
BANJO UNION , Replaced By: A0004286324
8
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
11
SEAL RING FUEL LINE TO FEED PUMP
14
LINE FROM DISTRIBUTOR TO LEFT WHEEL BRAKE CYLINDER 1165 MM
14
LINE FROM ADAPTER FITTING TO DISTRIBUTOR,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
17
LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
20
GROMMET
23
BRAKE HOSE BETWEEN THE LINES,730280
23
BRAKE HOSE FRONT LEFT AND RIGHT
26
RETAINING SPRING BRAKE HOSE TO BRACKET
26
LOCK , Replaced By: A0004280673
29
BRACKET BRAKE HOSE
29
BRACKET ADDITIONAL CABLE HARNESS TO WHEELHOUSE PANEL
32
LINE TO RIGHT FRONT WHEEL, 000,001,010 UP TO CHASSIS 107476,100,101,110 UP TO CHASSIS 179099
36
LINE FROM ADAPTER FITTING TO DISTRIBUTOR,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
36
LINE FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR, 055235
36
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
38
VALVE , Replaced By: A1214290134
38
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0004313907
38
VALVE , Replaced By: A0004313907
39
BRACKET VALVE TO BRACKET
40
BRACKET LINE MOUNTING,5 7245845 801938
40
BRACKET , Replaced By: A6674290540
40
BRACKET , Replaced By: A6674290640
41
SCREW STRUT TO CROSS MEMBER M 10X25
42
NUT CROSS MEMBER TO SIDE MEMBERS
44
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
44
LINE FROM BRAKE POWER REGULATOR TO RIGHT FRONT WHEEL 2000 MM
50
DISTRIBUTOR AT SIDE MEMBER,745033 N 000001 P 000001
50
DISTRIBUTOR AT SIDE MEMBER,745033 N 000001 P 000001
53
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
53
SCREW BRACKET TO CROSS CONNECTION STRUT
56
NUT STRAP TO BRACKET
57
WASHER BRACKET TO SIDE MEMBER
57
WASHER
59
LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
59
LINE FROM SPRING LOAD ACCUMULATOR TO RIGHT DISTRIBUTOR
62
BRAKE HOSE BRAKE LINE TOWARDS DISTRIBUTOR
65
RETAINING SPRING BRAKE HOSE TO BRACKET
68
DISTRIBUTOR REAR AXLE
71
SCREW PUMP TO BRACKET
83
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039532 TO BE ADAPTED DURING ASSEMBLY
86
LINE FROM MASTER CYLINDER TO FRONT BRAKE PRESSURE REGULATOR,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
89
BRACKET BRAKE LINE TO FIRE WALL
89
BRACKET BRAKE LINE TO FIRE WALL
89
BRACKET , 811451 N 000000 P 000000, Replaced By: A6674280840
92
BRACKET RELEASE SPRING,625235
98
CLIP BRAKE LINE TO CAB SUBSTRUCTURE,D 047756
101
CLIP BRAKE LINE TO CAB SIDE MEMBER
104
BRACKET , Replaced By: A6884287440
110
BRACKET BRAKE HOSE TO FRAME
110
BRACKET BRAKE HOSE TO SIDE MEMBER
110
BRACKET , Replaced By: A6704230323
113
SCREW BRACKET TO CONSOLE
116
NUT CROSS MEMBER TO SIDE MEMBERS
117
BRACKET OIL LINES
117
CLAMP. EXTENDABLE SPACER BREATHER LINE
118
CLAMP ELECTRIC CABLE TO BRAKE HOSE
118
CLAMP. EXTENDABLE SPACER BREATHER LINE
118
BRACKET OIL LINES
119
BRACKET OIL LINES
119
CLAMP. EXTENDABLE SPACER BREATHER LINE
119
CLAMP ELECTRIC CABLE TO BRAKE HOSE
120
DOUBLE CLAMP. CLAMP CABLE HARNESS MOUNTING,P 217441
121
CLAMP BRAKE LINE TO SIDE MEMBER
122
CLAMP BRAKE LINE MOUNTING
128
SCREW
131
NUT HEATING PIPE TO BRACKET
134
LOOM TIE LINE MOUNTING 280 MM
