Mercedes A3056148014 - Halter

O 345,EURO 2 671.010

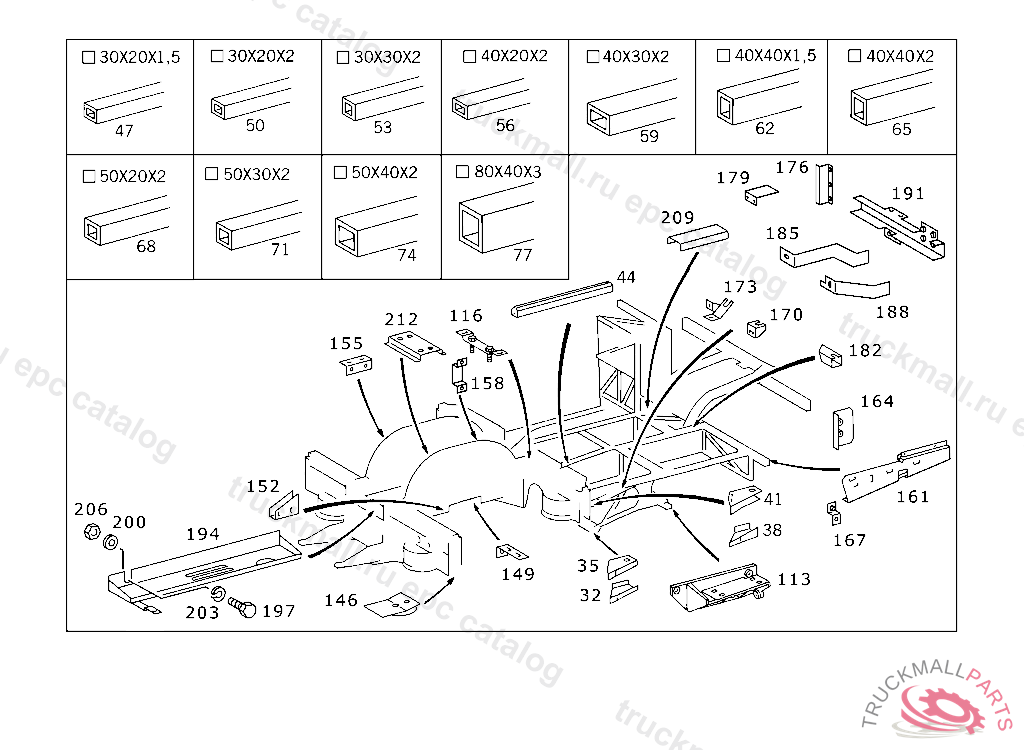

61 SUBSTRUCTURE - 212 SUBSTRUCTURE FRAMEWORK REAR,PART I IL. 3

Поз.
Артикул
Описание
32
A3576144232
35
A3576144032
38
A3576142632
41
A3576144132
44
A3276141234
47
HXB3739210129
50
HXB3739351025
TUBE ABOVE REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 935 10 25 RECTANGULAR TUBE 30 X 20 X 2,0 X 1380 MM
53
A6716220304
56
HXB3736328215
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 632 82 15 RECTANGULAR TUBE 40 X 20 X 2,0 X 1715 MM
59
A6716930510
SUPPORT. RECTANGULAR TUBE40X30X2X2382MM, TO BE ADAPTED DURING ASSEMBLY
62
HXB3736421846
SUPPORT , Replaced By: A3016128417
62
A3016128417
TUBE , TO BE ADAPTED DURING ASSEMBLY A 301 612 84 17 RECTANGULAR TUBE 40 X 40 X 1,5 X 2440 MM
65
HXB3736126118
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 612 61 18 RECTANGULAR TUBE 40 X 40 X 2,0 X 2386 MM
68
HXB3576112915
71
HXB3736122215
TUBE , TO BE ADAPTED DURING ASSEMBLY XB373 612 22 15 RECTANGULAR TUBE 50 X 30 X 2,0 X 2300 MM
74
HXB3736110734
77
HXB3576123716
146
A6716000045
149
A3056148014
BRACKET
152
A6716150914
155
A3276152114
158
A6716104800
161
A6716021314
164
A3576003914
167
A6716000314
170
A3576027436
173
A3576027736
176
A6716022136
179
A6716022236
182
A6716022514
185
A6716003914
188
A6716029414
191
A6716005514
209
A6716104300
209
A6716104200
212
A3016109636
