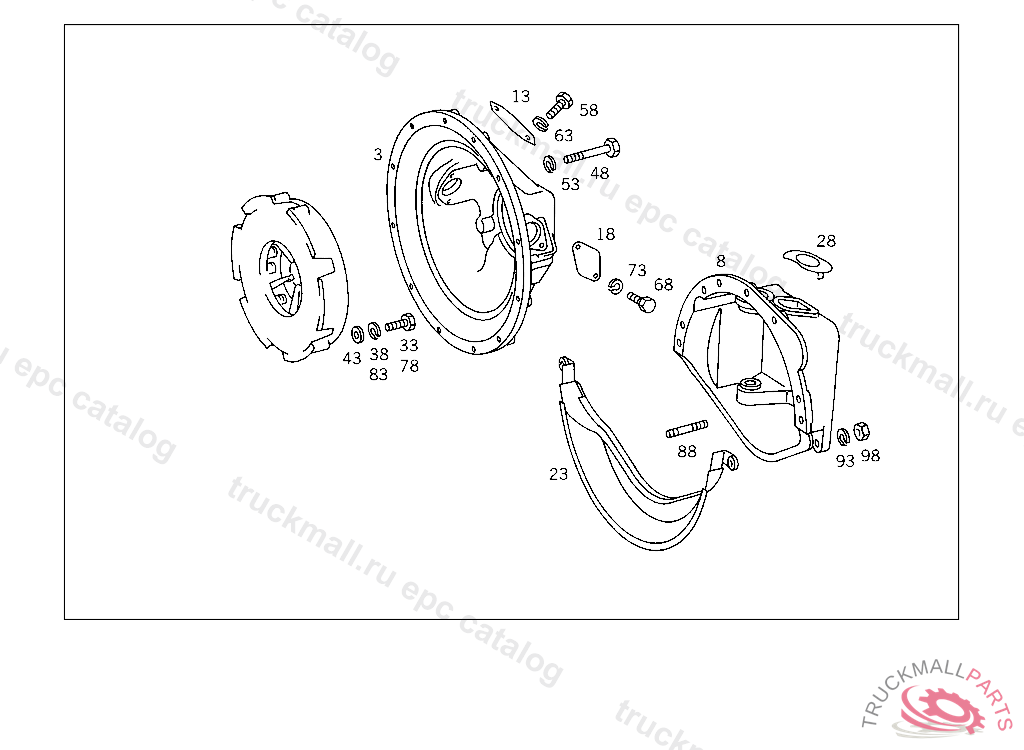

Поз.
Артикул
Описание
3
BELL HOUSING
3
BELL HOUSING , Replaced By: A3552510101
8
BELL HOUSING
13
END COVER TOP,4 696330
18
FLANGE CLUTCH BRAKE
23
SIDE PLATE REAR
23
PROTECTIVE PLATE
28
COVER ,079773
33
SCREW PIPE CLAMP
33
SCREW , Replaced By: N304017008021
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
43
WASHER RADIATOR TO RUBBER MOUNTING
48
SCREW EXHAUST PIPE TO BRACKET
53
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
58
SCREW COVER PLATE TO COVER PLATE M 6 X 12
58
SCREW , Replaced By: N304017006018
63
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
68
SCREW , Replaced By: N304017008016
68
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
73
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
78
SCREW END PIECE TO EXHAUST PIPE M 10X25
83
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
88
STUD BELL HOUSING TO FLYWHEEL HOUSING
88
STUD
93
LOCK WASHERROCKINGER TYP 59 G140,59 G150
98
NUT BRAKE ANCHOR PLATE TO REAR AXLE
999
CLUTCH DISC
999
CLUTCH DISC
