Поз.
Артикул
Описание
5

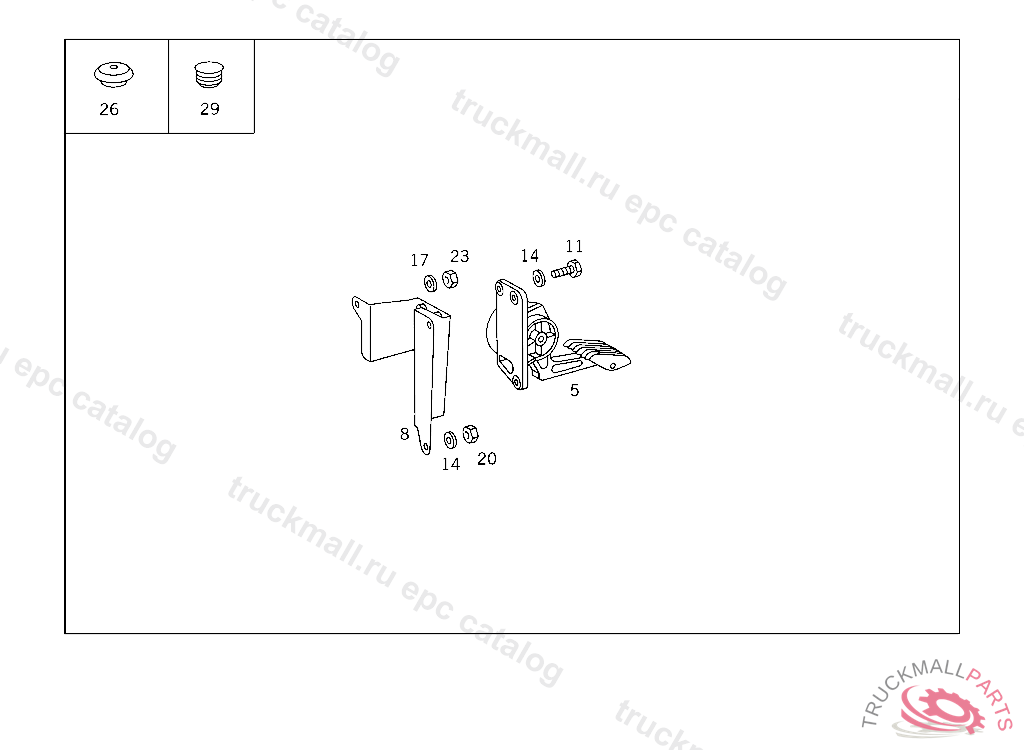

PEDAL ACCELERATOR PEDAL
8
BRACKET ACCELERATOR PEDAL TO FIRE WALL
11
SCREW BRACKET TO BRACKET
11
SCREW , Replaced By: N910142008001
11
SCREW , Replaced By: N910142008009
11
SCREW CLAMP TO BRACKET,5 597426
14
WASHER , Replaced By: N000125008443
14
WASHER EXHAUST MUFFLER TO STRAP
17
WASHER COMPRESSED AIR LINE TO BRACKET
17
WASHER , Replaced By: N009021006208
20
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
23
NUT AT FILTER BRACKET
23
NUT BRACKET TO BRACKET
23
NUT BALL SOCKET TO ROD
26
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
29
PLUG TOP,5 220080
