Поз.
Артикул
Описание

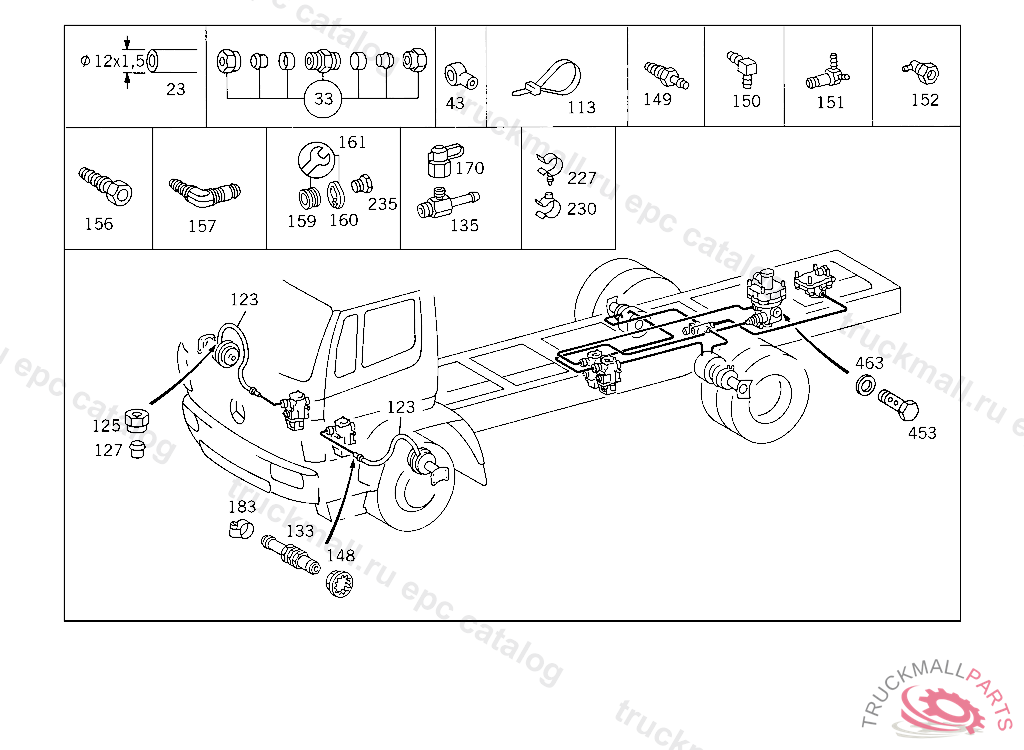

23
HOSE , Replaced By: A0009872827
23
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
23
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
33
FITTING , Replaced By: A0029906171
33
FITTING (PARTS KIT),LINE RUPTURE
43
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
113
LOOM TIE LINE MOUNTING 280 MM
113
LOOM TIE LINE MOUNTING
123
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
123
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
125
UNION NUT LINE CONNECTION
125
UNION NUT LINE CONNECTION, Replaced By: N000000006239
127
SEAL CONE LINE CONNECTION
127
GLAND , Replaced By: A0019901967
133
CONNECTOR ,5 288358, Replaced By: A0019901378, +001A6734210073
133
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
133
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
135
CONNECTOR FITTING WITH PROTECTION AGAINST TORSION TO M 22
148
LOCK REAR AXLE BRAKE HOSE,K 181360
148
LOCK REAR AXLE BRAKE HOSE,K 181360
149
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
150
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
151
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
152
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
156
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
157
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
159
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
160
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
161
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
170
TEST CONNECTION
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
183
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
183
CLAMP HOSE TO FITTING AND TO OIL TANK
227
CLAMP BRAKE HOSE
230
CLAMP BRAKE HOSE
235
SCREW. UNION SCREW LINE CONNECTION
453
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
463
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CONNECTOR 75 DEGREES
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
VALVE PART
999
SEAL RING , Replaced By: A0009940747
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW. UNION SCREW LINE CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
SEAL RINGWABCO
999
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
999
ELBOW FITTING
999
VALVE
999
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (SOLENOID VALVE)
999
FITTING 2/2-WAY VALVE,CONNECTION: "20",5 374133
999
FITTING AIR RESERVOIR,CONNECTION: "26", NOT USED
999
SEAL RINGWABCO
999
SEAL RING , NOT USED
999
SEAL RINGWABCO
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
999
CONNECTOR DISTRIBUTOR TO CAB
999
LOCK VALVE TO BRACKET
999
LOCK LEFT
999
LOCK RIGHT
999
BRACKET LEFT
999
BRACKET RIGHT
999
SCREW VALVE TO CAB M 8X85
999
SEAL RING LINE CONNECTION
999
NUT COMBINATION CYLINDER,CONNECTION: "12"
999
HOLLOW SCREW HEATING CONNECTION
