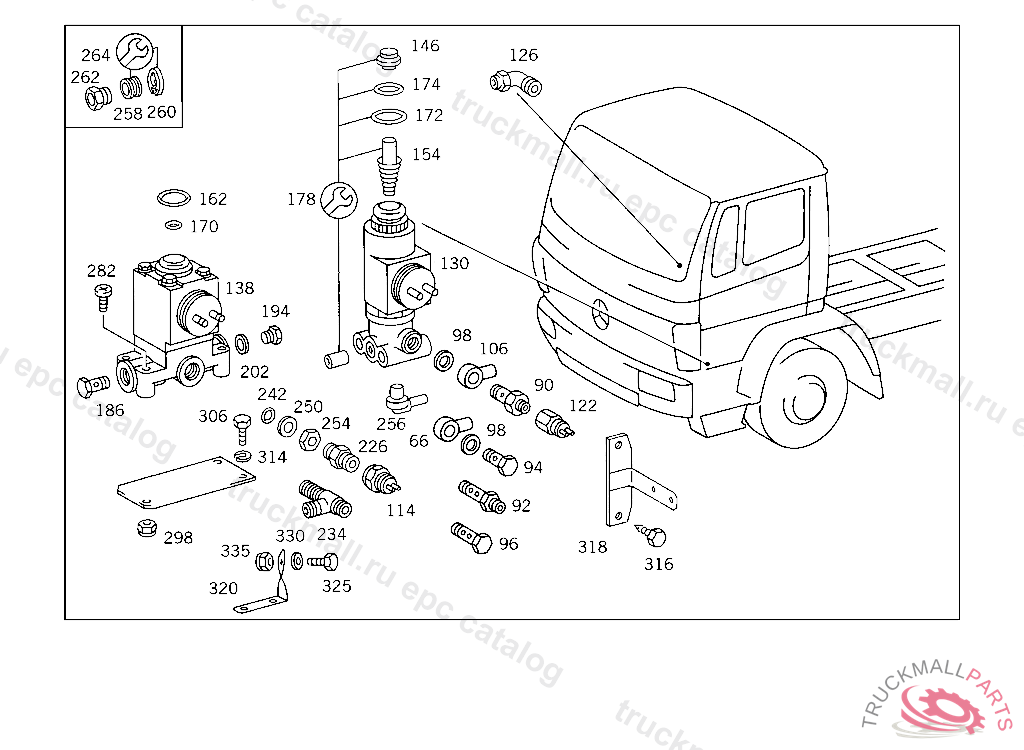

Поз.
Артикул
Описание
66
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
90
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
90
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
92
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
92
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
94
HOLLOW SCREW HEATING CONNECTION
94
HOLLOW SCREW HEATING CONNECTION
96
HOLLOW SCREW LINE CONNECTION
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
106
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
106
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
114
SWITCH EXHAUST BRAKE,K 251255
122
SWITCH 3/2-WAY VALVE
126
FITTING , Replaced By: A0019909871
126
FITTING FROM PUMP TO CYLINDER
126
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
130
VALVE (SOLENOID VALVE)
130
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
130
VALVE (3/2-WAY SOLENOID VALVE) EKS
138
VALVE PART , Replaced By: A0029971236
138
VALVE (3/2-WAY SOLENOID VALVE) "WABCO"
146
PROTECTIVE CAPWABCO
146
PROTECTIVE CAPWABCO
154
VALVE PART
162
SEAL RING25X1.5 MM
170
SEAL RING5.5X1.5 MM
170
SEAL RINGWABCO
170
SEAL RINGWABCO
172
SEAL RINGWABCO
174
SEAL RINGWABCO
178
GASKET KITKNORR
178
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
186
HOLLOW SCREW HEATING CONNECTION
186
HOLLOW SCREW HEATING CONNECTION
186
HOLLOW SCREW HEATING CONNECTION
186
HOLLOW SCREW HEATING CONNECTION
194
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
194
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
202
SEAL RING LINE CONNECTION
202
SEAL RING LINE CONNECTION
226
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
226
FITTING CONNECTION TO STOP LIGHT SWITCH
226
FITTING CONNECTION TO STOP LIGHT SWITCH
226
FITTING CONNECTION TO STOP LIGHT SWITCH
226
FITTING CONNECTION TO STOP LIGHT SWITCH
234
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
242
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
250
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
254
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
256
BREATHER , Replaced By: A3933280065
256
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
258
LOCK RING LINE CONNECTION
258
SEAL RING , Replaced By: A0009940747
260
LOCK , Replaced By: A0009945448
260
LOCK LINE CONNECTION
262
SCREW. UNION SCREW LINE CONNECTION
262
SCREW. UNION SCREW , Replaced By: A0009973734
264
REPAIR KIT , Replaced By: A0309971748
264
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
282
SCREW VALVE TO BRACKET,5 465030
282
SCREW VALVE TO BRACKET,5 465030
298
NUT , Replaced By: N913004006001
298
NUT PUMP TO BRACKET
298
NUT PUMP TO BRACKET
306
SCREW PUMP TO BRACKET
306
SCREW PUMP TO BRACKET
306
SCREW , Replaced By: N304017006016
314
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
314
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
316
SHEET METAL SCREW VALVE TO WINDOW SILL
318
BRACKET LINE MOUNTING, K001774
320
BRACKET LINE MOUNTING
325
SCREW , Replaced By: N304017008027
325
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
330
WASHER , Replaced By: N000125008443
330
WASHER EXHAUST MUFFLER TO STRAP
335
NUT , Replaced By: N913004008001
999
CONNECTOR DISTRIBUTOR TO CAB
999
CLAMP6/14-15 MM
