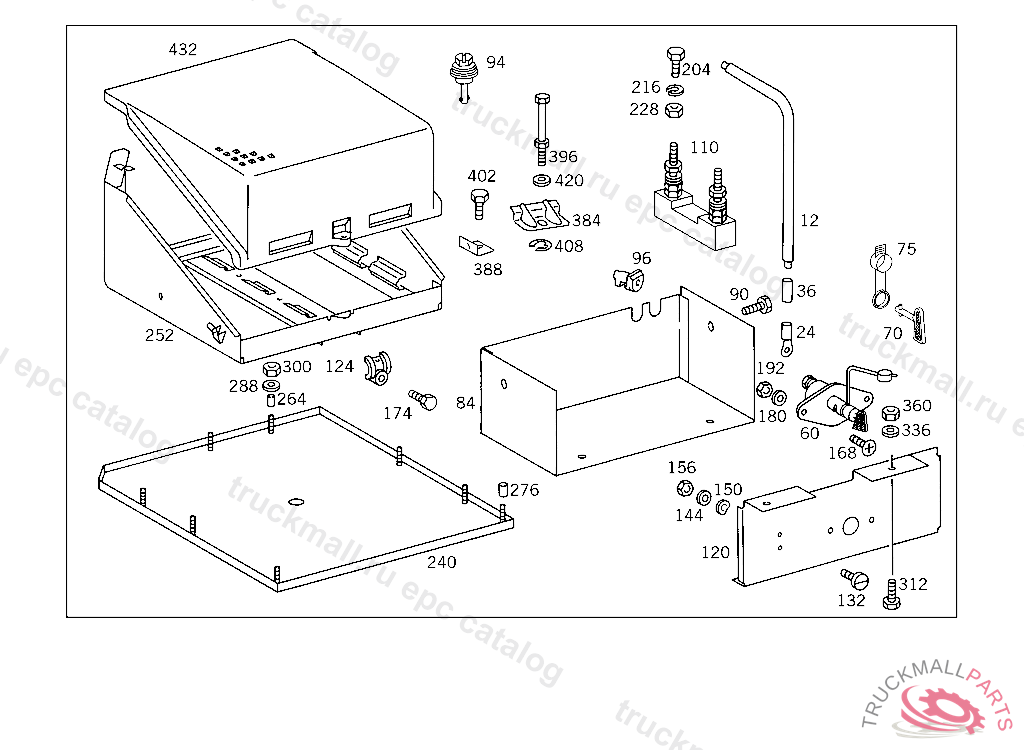

Поз.
Артикул
Описание
12
ELECTRIC CABLE (GROUND CABLE)
12
ELECTRIC CABLE (GROUND CABLE)
24
CABLE SHOE BATTERY CABLE
36
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
60
SWITCH (BATTERY MASTER SWITCH)
70
KEY BATTERY MASTER SWITCH
75
CAP BATTERY MASTER SWITCH
84
PROTECTIVE PLATE BATTERY MASTER SWITCH,5 213177
90
SCREW PROTECTIVE PLATE, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
94
LOCKING PIN ANTINOISE CAPSULE
96
GROMMET
110
BRACKET FUSE
120
SUPPORT BATTERY MASTER SWITCH, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
124
CLAMP CABLE HARNESS TO BRACKET
124
CLAMP CABLE HARNESS TO BRACKET
132
SCREW BRACKET TO SUPPORT
144
WASHER BRACKET TO SUPPORT
144
WASHER , Replaced By: N000125004319
150
SPRING WASHER ALTERNATOR CONNECTION D+
156
CAP NUT BRACKET TO SUPPORT
168
SCREW PUMP TO BRACKET
168
SCREW , Replaced By: N304017006016
174
SCREW , Replaced By: N304017006026
174
SCREW , Replaced By: N304017006026
174
SCREW , Replaced By: N304017006026
180
WASHER COMPRESSED AIR LINE TO BRACKET
180
WASHER COMPRESSED AIR LINE TO BRACKET
180
WASHER COMPRESSED AIR LINE TO BRACKET
180
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
192
NUT PUMP TO BRACKET
192
NUT PUMP TO BRACKET
192
NUT PUMP TO BRACKET
192
NUT , Replaced By: N913004006001
204
SCREW POS. POLE
216
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
228
NUT POS. POLE
240
TRAY BATTERY SUPPORT, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
240
TRAY BATTERY SUPPORT,5 2131775 419106
252
BATTERY SUPPORT , FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
264
SPACER TUBE REFRIGERANT LINE TO CAB
276
SPACER TUBE COVERING TO SEMIMONOCOQUE WING, TO BE ADAPTED DURING ASSEMBLY
288
WASHER COMPRESSED AIR LINE TO BRACKET
288
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
300
NUT PUMP TO BRACKET
300
NUT , Replaced By: N913004006001
312
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
312
SCREW BRACKET TO SIDE MEMBER
312
SCREW , Replaced By: N308676012012
336
WASHER
336
WASHER , Replaced By: N000125010532
336
WASHER RADIATOR TO RUBBER MOUNTING
360
NUT STRAP TO BRACKET
360
NUT SUPPORT TO SIDE MEMBER
360
NUT , Replaced By: N910113010000
384
ANGLE BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
388
STOP BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
396
CLAMPING SCREW BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
402
SCREW , Replaced By: N304017008016
402
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
408
LOCK PLATE RELEASE LEVER TO SHAFT
420
WASHER EXHAUST MUFFLER TO STRAP
420
WASHER BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
420
WASHER , Replaced By: N000125008443
432
COVER BATTERY SUPPORT, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
999
BATTERY SUPPORT , Replaced By: A6765400716
999
BATTERY SUPPORT , Replaced By: A6765400616
999
SCREW , Replaced By: A6765410024
999
TRAY ,5 213176, Replaced By: A6765400221, +001A6735400122, +004A0009842436
999
PROTECTIVE PLATE ,5 213176, Replaced By: A6735410405, +001A6765400221, +002A0009842436
999
BOOT BATTERY MASTER SWITCH
999
SWITCH , Replaced By: A0005458408
