Поз.
Артикул
Описание

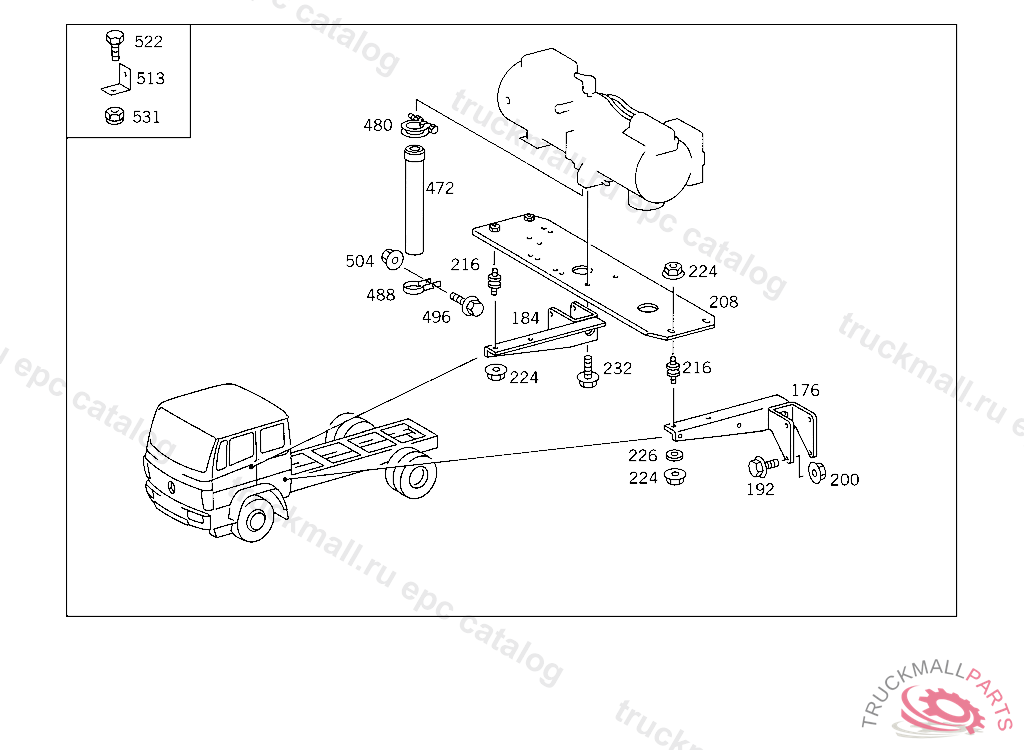

176
BRACKET LEFT
184
BRACKET RIGHT
192
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
192
SCREW , Replaced By: N910105010009
200
NUT EXHAUST PIPE TO SIDE MEMBER
208
BRACKET HEATER UNIT
208
SUPPORT , Replaced By: A6735060240
216
BUFFER SUPPORT TO BRACKET
216
RUBBER BUFFER SUPPORT TO BRACKET
224
NUT BRACKET TO BRACKET
226
WASHER BRACKET TO LEFT SIDE MEMBER
226
WASHER , Replaced By: N009021008213
232
SCREW , Replaced By: N910143008002
232
SCREW , Replaced By: N910142008001
232
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
232
SCREW BATTERY MOUNTING
472
PIPE LINE (EXHAUST LINE)
472
PIPE LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 052056, Replaced By: A0018302715
480
HOSE CLAMP EXHAUST PIPE TO HEATER UNIT
488
CLAMP TUBE TO BRACKET
496
SCREW BRACKET TO CROSS CONNECTION STRUT
496
SCREW CLAMP TO BRACKET,5 597426
496
SCREW , Replaced By: N304017008034
496
SCREW , Replaced By: N910142008009
504
NUT BRACKET TO BRACKET
504
NUT , Replaced By: N913004008001
513
BRACKET SENSOR CABLE TO FRONT AXLE
522
SCREW END PIECE TO EXHAUST PIPE M 10X25
531
NUT , Replaced By: N910113010000
531
NUT STRAP TO BRACKET
999
BRACKET HEATER UNIT
999
PIPE FROM ENGINE TO HEATER, NOT USED
999
HOSE FROM SCREW FITTING TO RECIRCULATING PUMP
999
HOSE FROM HEATING WATER PIPE TO HEATER
999
GROMMET LINE PASSAGE AT SIDE MEMBER
999
GROMMET , Replaced By: A4069975081
999
SEAL RINGTO 942 500 15 98
999
SEAL RING
999
SWITCH
999
BLOWER
999
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
999
PUMP
999
SWITCH
999
SWITCH , Replaced By: A0018354506
999
CONTROL UNITGGVS
999
CONTROL UNITSTANDARD
999
HEATER PLUG
999
TEMPERATURE SENSOR
999
BURNER
999
LAMP , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0005430142
999
CLOCK60 MIN
999
AUXILIARY PUMP (METERING PUMP)
