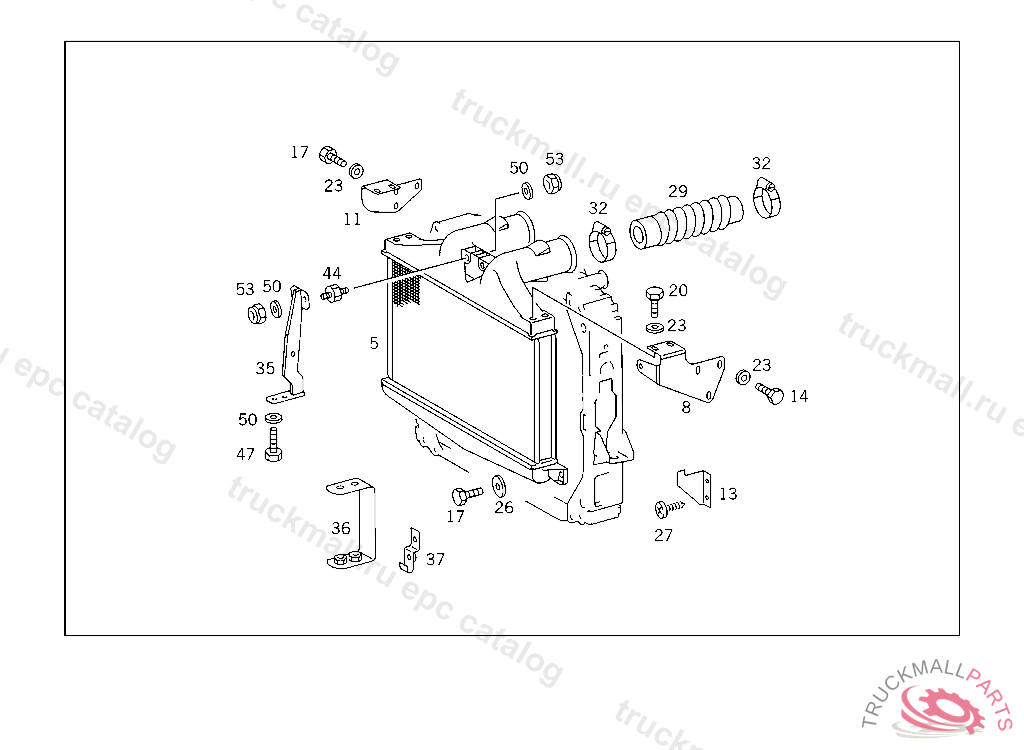

Поз.
Артикул
Описание
5
RADIATOR , RECOMMENDED FOR TAKING ON STOCK
8
BRACKET CHARGING AIR INTERCOOLER,RIGHT
11
BRACKET CHARGING AIR INTERCOOLER,RIGHT
13
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
14
SCREW BATTERY MOUNTING
17
SCREW BRACKET TO BRACKET
17
SCREW , Replaced By: N910142008001
20
SCREW COVERING TO SUPPORT
20
SCREW PROTECTIVE PLATE TO CLAMP
23
WASHER EXHAUST MUFFLER TO STRAP
23
WASHER , Replaced By: N000125008443
26
WASHER , Replaced By: N009021008213
26
WASHER BRACKET TO LEFT SIDE MEMBER
26
WASHER BRACKET TO CAB REAR PANEL
27
SHEET METAL SCREW , Replaced By: N000000002062
27
SCREW
29
HOSE FROM ENGINE TO CHARGE AIR INTERCOOLER, RECOMMENDED FOR TAKING ON STOCK
29
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE, RECOMMENDED FOR TAKING ON STOCK
32
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
32
CLAMP , Replaced By: A0059972990
32
CLAMP , Replaced By: N000000000675
35
RADIATOR STRUT BRACING TO SUPPORT TO 677 501 14 01
36
REINFORCEMENT BRACING TO SUPPORT
37
BRACKET CHARGE AIR INTERCOOLER
44
RUBBER BUFFER COVERING TO FRAME
47
SCREW CLAMP TO BRACKET,5 597426
47
SCREW BRACKET TO BRACKET
47
SCREW , Replaced By: N910142008001
47
SCREW , Replaced By: N910142008009
50
WASHER , Replaced By: N000125008443
50
WASHER EXHAUST MUFFLER TO STRAP
53
NUT BRACKET TO BRACKET
999
SCREW WATER DRAIN
