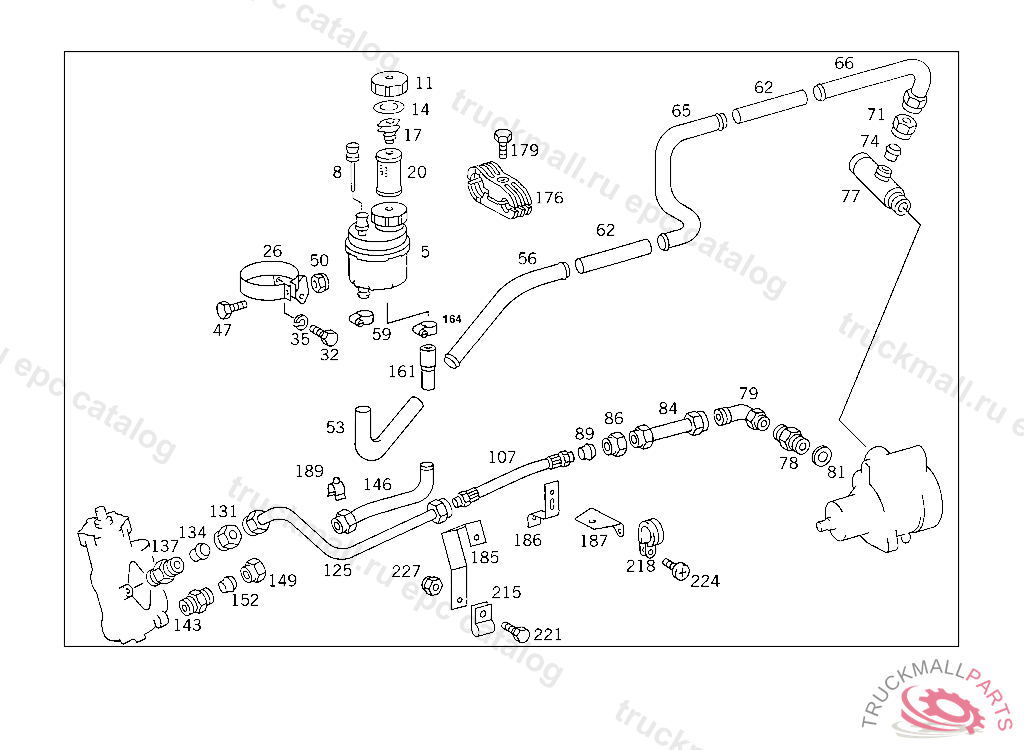

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
26
BRACKET OIL TANK,5 094745
32
SCREW CENTRAL LOCK TO CAB M 10X16
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
47
SCREW OIL TANK TO BRACKET
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
53
HOSE ,K 055044
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 163366
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
59
CLAMP , Replaced By: N000000000667
62
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
65
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 047844-5 129471
65
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
65
LINE , Replaced By: A0004291601
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 3341845 955600 SA 083.128/24/25: 5 903781-5 955600
71
NUT LINE CONNECTION
71
UNION NUT LINE CONNECTION, Replaced By: N000000006243
74
GLAND , Replaced By: A0019901267
77
ELBOW FITTING SUCTION LINE TO OIL PUMP
77
FITTING SUCTION LINE TO OIL PUMP
78
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
78
FITTING DELIVERY LINE TO PUMP
78
FITTING DELIVERY LINE TO PUMP
78
SCREW-IN FITTING SERVICE BRAKE VALVE
79
FITTING SUCTION LINE TO OIL PUMP
79
ELBOW FITTING DELIVERY LINE TO PUMP
81
SEAL RINGTO 006 997 00 72
81
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
84
TUBE FROM HIGH PRESSURE HOSE TO STEERING
84
LINE , Replaced By: A0005516156
86
UNION NUT LINE CONNECTION
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
SEAL CONE LINE CONNECTION
89
GLAND , Replaced By: A0019901967
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
107
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
125
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,5 163366
131
NUT. UNION NUT LINE CONNECTION
134
CUTTING RING. GLAND LINE CONNECTION
137
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
143
FITTING DELIVERY LINE TO PUMP
146
LINE12 MM, ORDER BY THE METER4 691315
146
LINE , Replaced By: A0004291001
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
149
UNION NUT LINE CONNECTION
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
152
SEAL CONE LINE CONNECTION
152
GLAND , Replaced By: A0019901967
161
HOSE ,K 055044
161
HOSE ,K 055044
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK
176
BRACKET DELIVERY AND SUCTION LINES
179
SCREW COVER PLATE TO BRACKET
179
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
179
SCREW DISTRIBUTOR TO CAB
185
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
189
CLAMP LINE MOUNTING
189
CLAMP , Replaced By: N916016015202
189
BRACKET HOSE TO OIL DIPSTICK GUIDE TUBE,K 130676
189
CLAMP OIL FILLER PIPE TO BRACKET
189
BRACKET WITH PLUG,K 130676
189
BRACKET , Replaced By: A6734661040
215
CLAMP LINE MOUNTING
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
218
CLAMP CABLE HARNESS MOUNTING
218
CLAMP , Replaced By: N000000001045
218
CLAMP , Replaced By: N916016010211
218
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
218
CLAMP DELIVERY AND SUCTION LINES TO FRAME
218
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
221
SCREW CLAMP MOUNTING M 6X16
221
SCREW , Replaced By: N914146006102
224
SCREW DISTRIBUTOR TO CAB
224
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
227
NUT PUMP TO BRACKET
227
NUT , Replaced By: N913004006001
999
NUT SUCTION LINE TO OIL PUMP
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW DISTRIBUTOR TO CAB
999
SCREW , Replaced By: N000933006151
999
BRACKET LINE MOUNTING,5 220227
999
PROTECTIVE CAP
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
THRUST RING SUCTION LINE TO OIL PUMP
