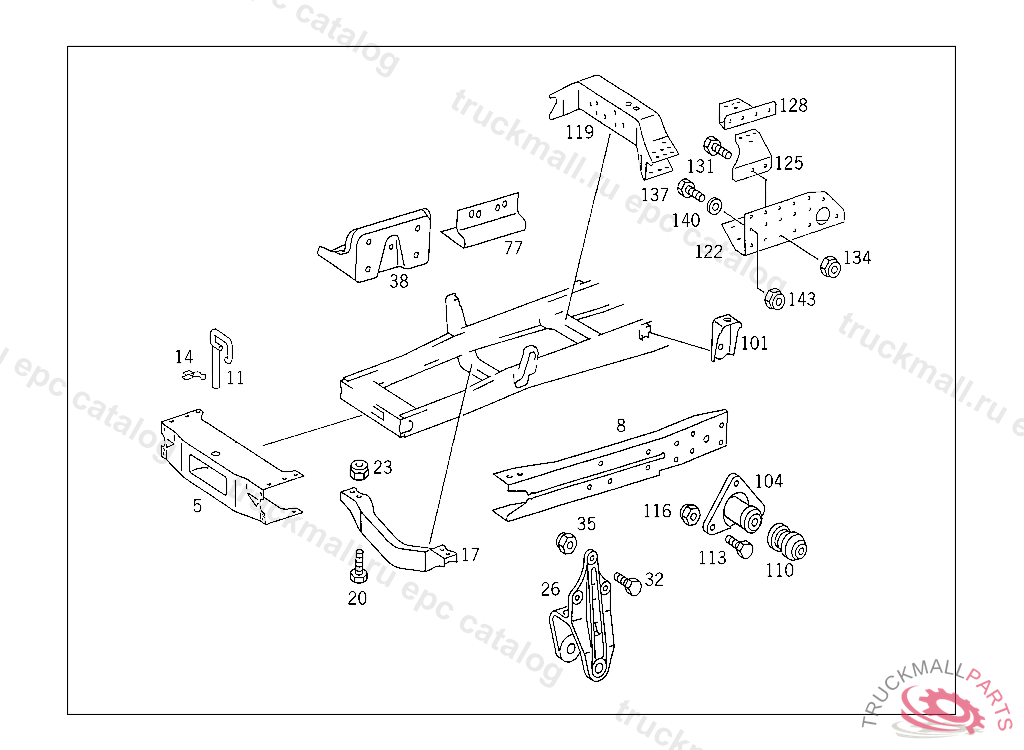

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
8
GUSSET PLATE FRONT RIGHT, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE , Replaced By: A6783100071
8
GUSSET PLATE , Replaced By: A6783100171
8
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
11
COUPLING PIN FOR COUPLING MOUTH
14
U-BOLT COUPLING PIN
17
ENGINE CROSS MEMBER FRONT
26
FRONT SPRING BRACKET FRONT,5 426402
26
FRONT SPRING BRACKET ,5 358487, Replaced By: A6753220901, +001A6753220450, +001A6753250350, +001A3609900114, +002A6459900714, +001N000960016242, +004N913004016005
26
FRONT SPRING BRACKET , NOT INCLUDED IN RANGE OF DELIVERY OF FRAME5 3584885 426401, Replaced By: A6773220001, +001A6773220050
32
SCREW , Replaced By: A0009906314
32
SCREW PLATE TO SIDE MEMBER
32
SCREWM 16X17X24X44
32
SCREWM 16X17X28X48
35
NUT CONSOLE TO SUPPORT
35
NUT STEERING SUPPORT TO FRAME
35
NUT , Replaced By: N910113014000
35
NUT , Replaced By: N910113016001
38
SUPPORT ENGINE FRONT MOUNTING
101
CONSOLE BODY MOUNTING
110
BUSHING
113
SCREWM 12X13X35X52
113
HEXAGON HEAD BOLT. SCREW REINFORCEMENT TO SIDE MEMBER M 12X55
113
SCREW , Replaced By: N308676012016
116
NUT , Replaced By: N910113012003
116
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
119
CROSS MEMBER TRANSMISSION,5 519079
119
CROSS MEMBER ,5 519078, Replaced By: A6753120011, +001A6753112260, +001A6753112360, +001A6753112383, +001A6733121152, +001A6733121252, +008N000961012052, +006N000961012151, +014N913004012008
122
REINFORCEMENT LEFT,5 311228
122
REINFORCEMENT RIGHT,5 311228
122
REINFORCEMENT LEFT
122
REINFORCEMENT RIGHT
125
REINFORCEMENT RIGHT,5 519079
125
REINFORCEMENT LEFT
125
REINFORCEMENT RIGHT
125
REINFORCEMENT LEFT
128
ANGLE LEFT
128
ANGLE , Replaced By: A6733121052
128
ANGLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6733121052
131
SCREW REINFORCEMENTS AND ANGLE TO CROSS MEMBER,5 519079
131
SCREW STRUT TO CROSS MEMBER M 10X25
131
SCREW CONSOLE TO SIDE MEMBER
131
SCREW CONNECTOR TO REAR SHIFTING ROD
134
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
134
NUT SUPPORT TO SIDE MEMBER
137
SCREW BRACKET TO FRAME M 12X35
140
WASHER BRACKET TO FRAME
143
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
143
NUT , Replaced By: N910113012003
999
REINFORCEMENT RIGHT SIDE MEMBER
999
REINFORCEMENT LEFT SIDE MEMBER
