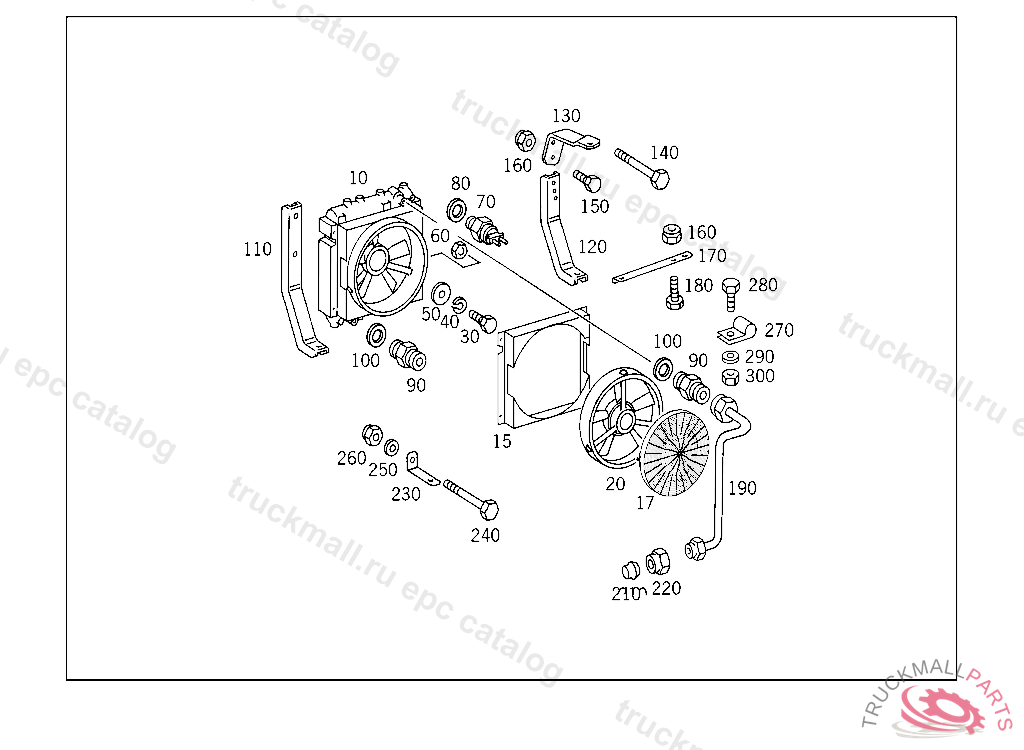

Поз.
Артикул
Описание
10
RADIATOR TRANSMISSION OIL COOLER
15
FAN SHROUD , FROM IDENT NO. 5 274832 ALSO INSTALLED ON 5 264779, 5 268469
17
PROTECTIVE GRILL , FROM IDENT NO. 5 274832 ALSO INSTALLED ON 5 264779, 5 268469
20
BLOWER
30
SCREW COVER PLATE TO BRACKET
30
SCREW COVER PLATE TO COVER PLATE M 6 X 12
30
SCREW , Replaced By: N304017006018
40
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
50
WASHER COMPRESSED AIR LINE TO BRACKET
50
WASHER , Replaced By: N009021006208
60
NUT BALL PIVOT TO LEVER
70
THERMO-SWITCH OIL COOLER, FROM IDENT NO. 5 274832 ALSO INSTALLED ON 5 264779, 5 268469
80
SEAL RING FUEL LINE TO FEED PUMP
90
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
100
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
110
SUPPORT OIL COOLER TO FRAME, FROM IDENT NO. 5 274832 ALSO INSTALLED ON 5 264779, 5 268469
120
SUPPORT OIL COOLER TO FRAME
120
SUPPORT OIL COOLER TO FRAME
130
BRACKET OIL COOLER,5 4120825 424630
130
BRACKET OIL COOLER
140
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
150
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
150
SCREW EXHAUST PIPE TO BRACKET
160
NUT STRAP TO SUPPORT
160
NUT EXHAUST PIPE TO SIDE MEMBER
170
SUPPORT OIL COOLER TO BRACKET
180
SCREW OIL COOLER TO BRACKET M 10X14
190
LINE FEED LINE LEADING TO OIL COOLER TO TRANSMISSION
190
LINE
190
LINE FEED LINE LEADING TO OIL COOLER TO TRANSMISSION
190
LINE
210
GLAND LINE CONNECTION
220
UNION NUT LINE CONNECTION
230
BRACKET OIL LINES TO FRAME SIDE MEMBERS
240
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
240
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
240
SCREW , Replaced By: N910105010023
250
WASHER , Replaced By: N006902011102
250
WASHER BRACKET TO FRAME
250
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
260
NUT STRAP TO SUPPORT
260
NUT BRACKET TO CROSS MEMBER
270
CLAMP DELIVERY AND SUCTION LINES TO STEERING
280
SCREW AT FILTER BRACKET
290
WASHER , Replaced By: N009021006208
290
WASHER COMPRESSED AIR LINE TO BRACKET
300
NUT AT FILTER BRACKET
999
LINE FEED LINE LEADING TO OIL COOLER TO TRANSMISSION
999
LINE
