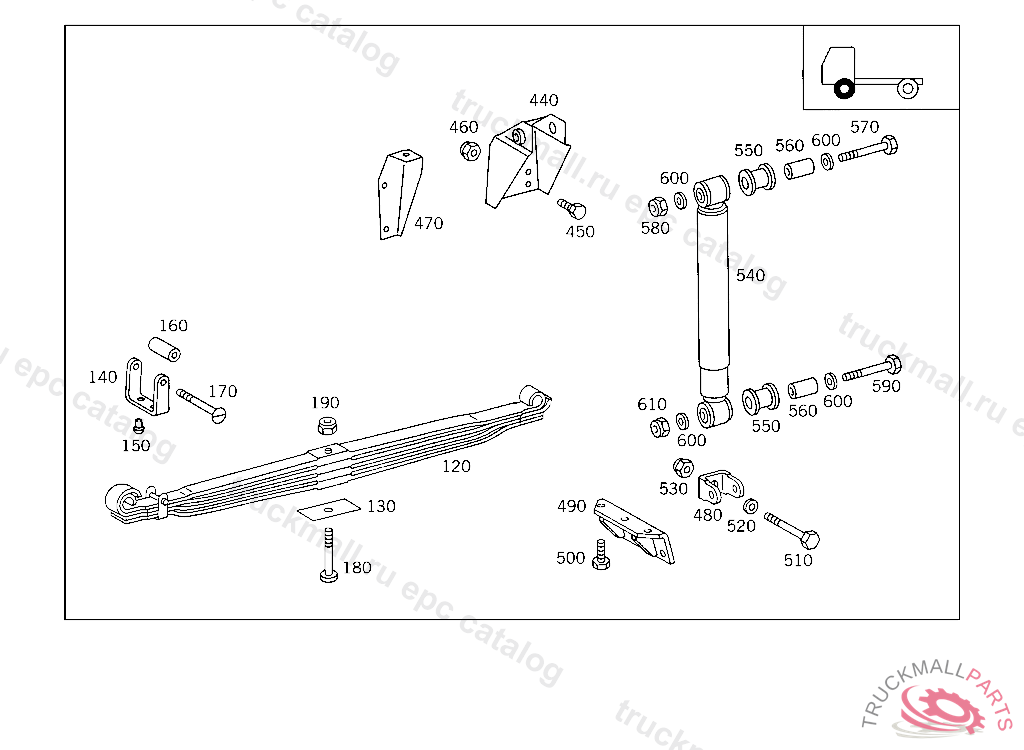

Поз.
Артикул
Описание
120
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
130
SHIM
140
SPRING CLAMP ,5 484790
150
RIVET SPRING CLAMP TO SPRING LEAF
160
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
170
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
180
SPRING BOLT
190
HEXAGON NUT. NUT SPRING BOLT
190
NUT , Replaced By: N910113012005
440
BRACKET SHOCK ABSORBER,TOP
440
BRACKET SHOCK ABSORBER,TOP
450
SCREW MOUNTING TO CONSOLE M 14X35
450
SCREW , Replaced By: N308676014008
460
NUT , Replaced By: N910113014000
460
NUT STEERING SUPPORT TO FRAME
470
CONSOLE FRONT AXLE I SHOCK ABSORBER,RIGHT BOTTOM
470
CONSOLE FRONT AXLE I SHOCK ABSORBER,LEFT BOTTOM
480
BRACKET SHOCK ABSORBER TO FRONT SPRING
490
CONSOLE SHOCK ABSORBER TO SHIM
500
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
510
SCREW BRACKET TO BRACKET
520
WASHER
530
NUT , Replaced By: N910113022001
530
NUT FRONT SPRING TO SPRING BRACKET
530
NUT SHOCK ABSORBER TO FRONT SPRING, Replaced By: N910113022000
540
SHOCK ABSORBER FRONT AXLE
550
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
560
SPACER RINGTO 002 323 86 00,003 323 03 00,
570
SCREW RUBBER MOUNTING TO SUPPORTING ARM M16X80,5 566418
580
NUT CONSOLE TO SUPPORT
580
NUT , Replaced By: N910113016001
590
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
590
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
590
SCREW , Replaced By: N308765016002
600
WASHER , Replaced By: N000125017016
600
WASHER BRACKET TO FRAME
600
WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
610
NUT CONSOLE TO SUPPORT
610
NUT , Replaced By: N910113016001
