Mercedes N912004014100 - КОЛЬЦО ПРУЖИННОЕ

OM 327 327.943

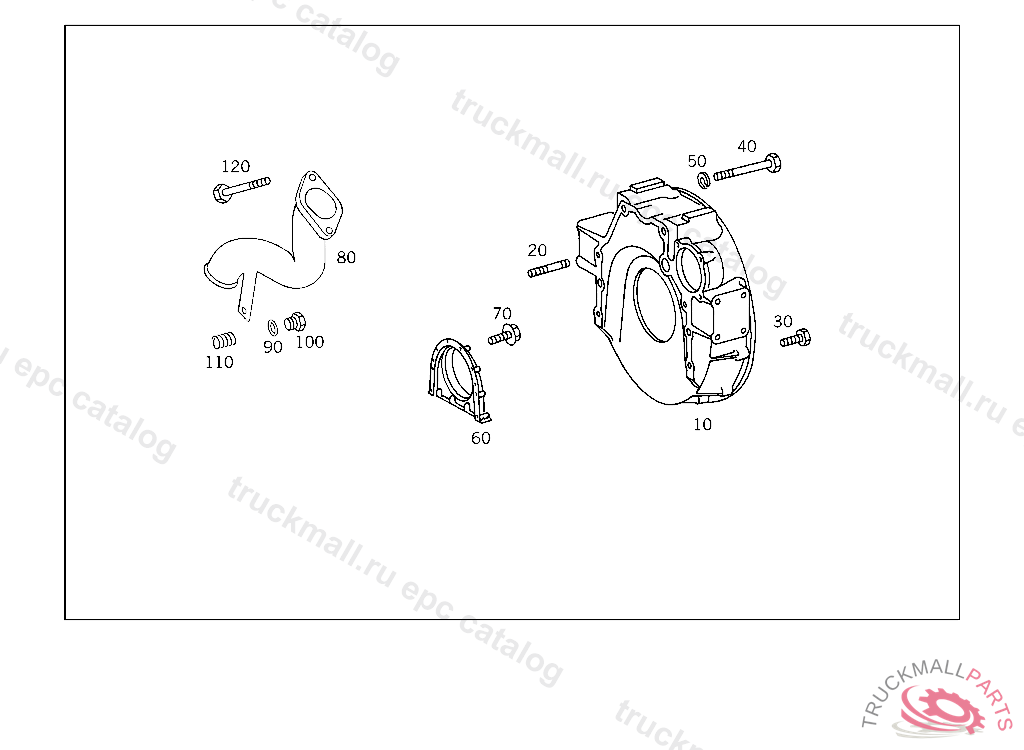

25 CLUTCH - 001 ENGINE PARTS USED WITH VOITH-DIWABUS TRANSMISSION

Поз.
Артикул
Описание
10
A3602510703
COUPLING RING
10
A3272510103
COUPLING RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 065350, Replaced By: A3602510703
20
N000939010012
STUD BOLT
30
N304017014010
SCREW BRACKET TO SIDE MEMBER
30
N000931014050
SCREW , Replaced By: N304017014010
40
N000931014012
SCREW
50
N912004014100
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
60
A3270110208
COVER CRANKSHAFT,REAR
70
N900170008015
SCREW CYLINDER CRANKCASE REAR COVER
80
A3272001051
LINE UPPER
90
N007603022400
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
100
A3469970230
SCREW PLUG AT TANK
100
N007604022100
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
110
N900421008004
THREADED INSERT
120
N000931008103
SCREW DIFFERENTIAL CASE
