Поз.
Артикул
Описание

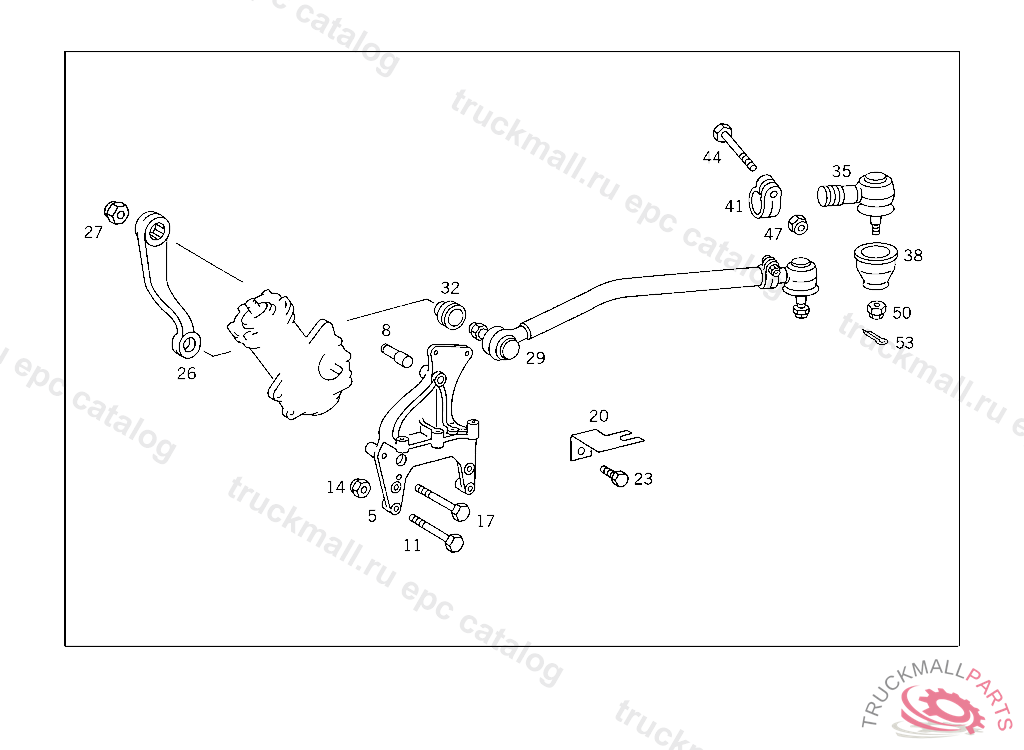

5
STEERING SUPPORT
5
STEERING BRACKET
8
PIN
11
SCREW STEERING SUPPORT TO FRAME M 14X55
11
SCREW BATTERY CASE TO SIDE MEMBER
11
SCREW BATTERY CASE
11
SCREW , Replaced By: N308676014013
14
NUT , Replaced By: N910113014000
17
SCREW SUPPORT TO TRANSMISSION
17
SCREW , Replaced By: N308676016007
17
SCREW STEERING TO STEERING BRACKET
20
BRACKET AT FRAME
23
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
26
PITMAN ARM
26
PITMAN ARM
27
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
29
DRAG LINKTRW DO BRASIL
29
DRAG LINKNAKATA
29
DRAG LINK
29
DRAG LINKNAKETA
29
DRAG LINKTRW DO BRASIL
32
DUST CAP SCREWED PART OF JOINT TO 682 460 31 05,98 05,75 05,77 05
35
JOINT TO BE SCREWED INTO DRAG LINK TO 682 460 98 05
35
DRAG LINK END TO BE SCREWED INTO DRAG LINK TO 682 460 31 05
35
JOINT TO BE SCREWED INTO DRAG LINK TO 682 460 98 05
38
DUST CAP SCREWED PART OF JOINT TO 682 460 31 05,98 05,75 05,77 05
41
CLAMP JOINT TO DRAG LINK TO 682 460 75 05
41
CLAMP JOINT TO DRAG LINK TO 682 460 31 05
41
CLAMP JOINT TO DRAG LINK TO 682 460 98 05
44
SCREW JOINT TO DRAG LINK M12X1.5X60,TO 682 460 75 05
44
SCREW CLAMP TO DRAG LINK M12X1.5X60,TO 682 460 31 05
44
SCREW , Replaced By: N308676012018
47
NUT SUPPORT TO SIDE MEMBER
50
NUT
53
COTTER PIN DRAG LINK TO STEERING ARM
