Поз.
Артикул
Описание

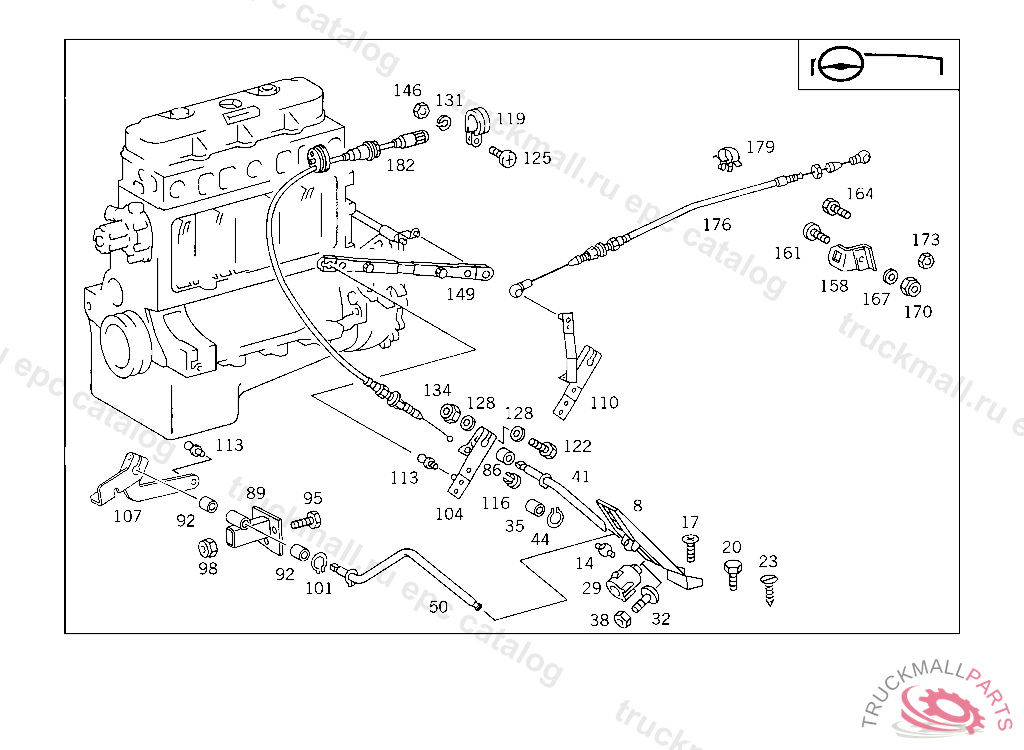

8
ACCELERATOR PEDAL
14
JOINT
17
SCREW PEDAL TO CAB FLOOR M 6X16
17
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M6X12
29
STOP FULL THROTTLE
35
BUSHING ,B 892893
41
LEVER (PEDAL LEVER)
44
LOCK PLATE CONTROL SHAFT TO CAB
86
BUSHING ,B 892893
104
LEVER (CONTROL LEVER),B 892893
110
LEVER
113
BALL PIVOT
113
BALL PIVOT. BALL STUD
122
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
128
WASHER PLUG SOCKET TO BRACKET
128
WASHER PLUG SOCKET TO BRACKET
134
NUT BRACKET TO FIRE WALL
158
BRACKET
164
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
173
NUT
176
WIRE CABLE
179
CLAMP BOWDEN CABLE TO CAB
182
WIRE CABLE IDLING ADJUSTER
182
WIRE CABLE IDLING ADJUSTER
182
WIRE CABLE , Replaced By: A6883000032
182
WIRE CABLE , Replaced By: A6883000032
182
WIRE CABLE , Replaced By: A6883000032
182
WIRE CABLE , Replaced By: A6883000032
182
WIRE CABLE IDLING ADJUSTER,B 892893 NO.8650I.......I I I II .......INO.9985I I I II I
182
WIRE CABLE IDLING ADJUSTER,B 892893
