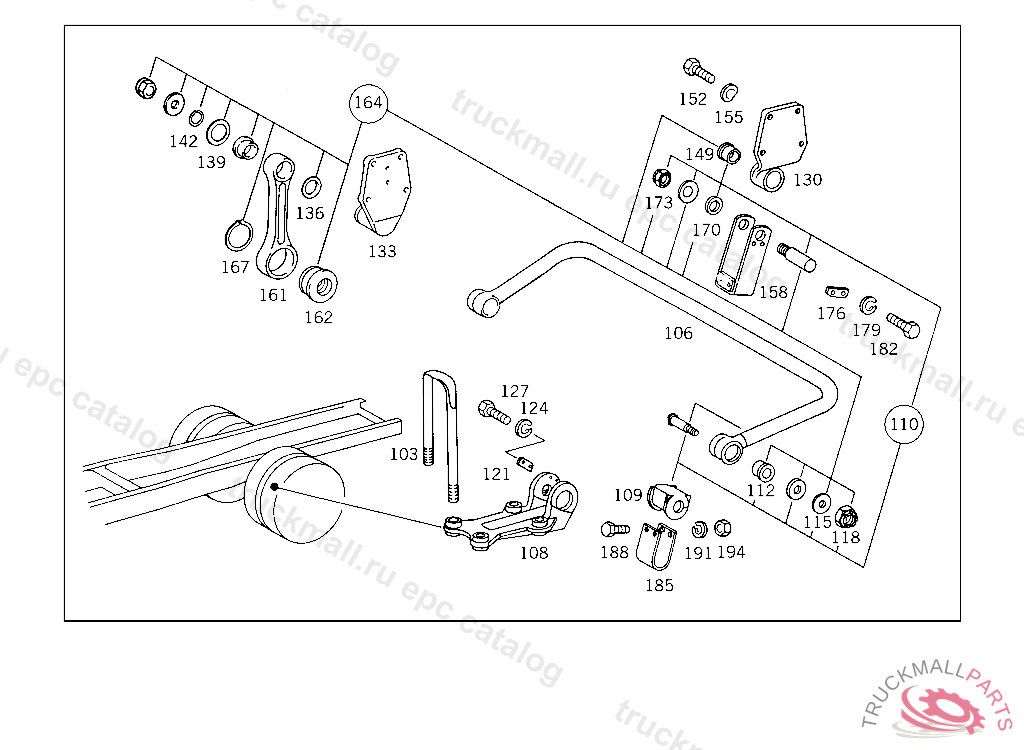

Поз.
Артикул
Описание
103
U-BOLT REAR SPRING TO REAR AXLE
106
TORSION BAR , 702708
108
BEARING TORSION BAR,FRONT, 702708
109
RUBBER MOUNTING TORSION BAR,4 114583
110
REPAIR KIT ,4 114583, Replaced By: A3463200128
110
REPAIR KIT TORSION BAR MOUNTING,4 114583
112
BUSHING TORSION BAR TO BEARING BRACKET
115
DISC SPRING TORSION BAR TO BEARING BRACKET
118
NUT TORSION BAR TO BEARING BRACKET
121
LOCK SPRING PIN LOCK
124
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
127
SCREW CLAMP TO BRACKET AND TO PIPE
130
BEARING BRACKET TORSION BAR,REAR,4 114583
133
BEARING BRACKET , Replaced By: A3933200678, +001A3933260152, +001N913004016004
133
CONSOLE , Replaced By: A3933261163, +001N000961016081
136
SPACER WASHER , Replaced By: A3873230252
136
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
139
WASHER SHACKLE TO CONSOLE,965965
142
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
149
BUSHING TORSION BAR TO BEARING BRACKET
152
SCREW BRACKET TO SUPPORT
155
SPRING WASHER BRACKET TO TIMING CASE
158
SHACKLE REAR SPRING TO FRAME
161
SHACKLE STABILIZER,5 904660
162
RUBBER MOUNTING TORSION BAR,4 707917
162
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904660
164
REPAIR KIT , Replaced By: A3873200128
164
REPAIR KIT TORSION BAR MOUNTING,4 707917
164
REPAIR KIT , Replaced By: A3873200528
164
REPAIR KIT TORSION BAR MOUNTING,4 707918
167
LOCK RING SHACKLE TO TORSION BAR,5 904660
170
WASHER TORSION BAR,4 114583
173
NUT TORSION BAR TO BEARING BRACKET
176
LOCK SPRING PIN LOCK
179
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
182
SCREW CLAMP TO BRACKET AND TO PIPE
185
BRACKET ,4 114583
188
SCREW BRACKET TO SHACKLE,4 114583
191
LOCK WASHER FITTING TO BRACKET
194
NUT , Replaced By: N308673012002
194
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
999
WASHER SHACKLE TO BEARING BRACKET
999
NUT , Replaced By: N308673014001
999
NUT STABILIZER, 756167
999
STUD BOLT
999
SCREW , Replaced By: N308676012015
999
SCREW BRAKE DRUM TO WHEEL HUB AND TO WHEEL SPIDER,RESP., UP TO FRONT AXLE 033858 UP TO REAR AXLE 024806 EXCEPT FOR 023200-023622 OR UP TO CHASSIS 705597 EXCEPT FOR 695068,695154,695171,695303,695351,695572,695743,695747,695849,695937,696468,696496,696656,696659, 696661,696682,697031,697082,698906.
999
SCREW BEARING BRACKET TO FRAME
999
SCREW , Replaced By: N308676012026
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW , Replaced By: N000961012051
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW , Replaced By: N308676014020
999
NUT BRACKET TO SIDE MEMBER,K 035196
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
GELENKBUCHSE. SPACER TUBE , Replaced By: A0003232750
999
SHOCK ABSORBER
999
LOCK BRACKET TO ENGINE SUPPORTING ARM
999
U-BOLT REAR SPRING TO REAR AXLE 400 MM
999
U-BOLT REAR SPRING TO REAR AXLE
999
BEARING BRACKET REAR STABILIZER
999
SCREW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: N000960020084
999
PIN , Replaced By: A6203200228
999
BRACKET
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE4 707618, Replaced By: A3875860232
999
TORSION BAR REAR AXLE
999
SHIM , 756167
999
SHACKLE , Replaced By: A3613200237
999
PIN SHOCK ABSORBER, 601037
999
SHIM STABILIZER
999
SHIM STABILIZER
999
BEARING BRACKET
999
U-BOLT REAR SPRING TO REAR AXLE
999
U-BOLT , Replaced By: A3583510125
999
BRACKET EXHAUST MUFFLER,LEFT,758898
999
BRACKET EXHAUST MUFFLER,RIGHT,758898
999
SPACER RING STABILIZER
999
BEARING BRACKET , 758897, Replaced By: A3463265163, +003N000137016200, +003N000961016026
999
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X210 MM
999
BEARING TORSION BAR,FRONT, 702707
999
BEARING TORSION BAR,FRONT, 702707
999
SHACKLE TORSION BAR, 756167
999
SHACKLE ,4 707917, Replaced By: A3873260647, +001A3873260281
999
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN DRAG LINK TO LEVER
999
WASHER BRACKET TO REAR CROSS MEMBER
