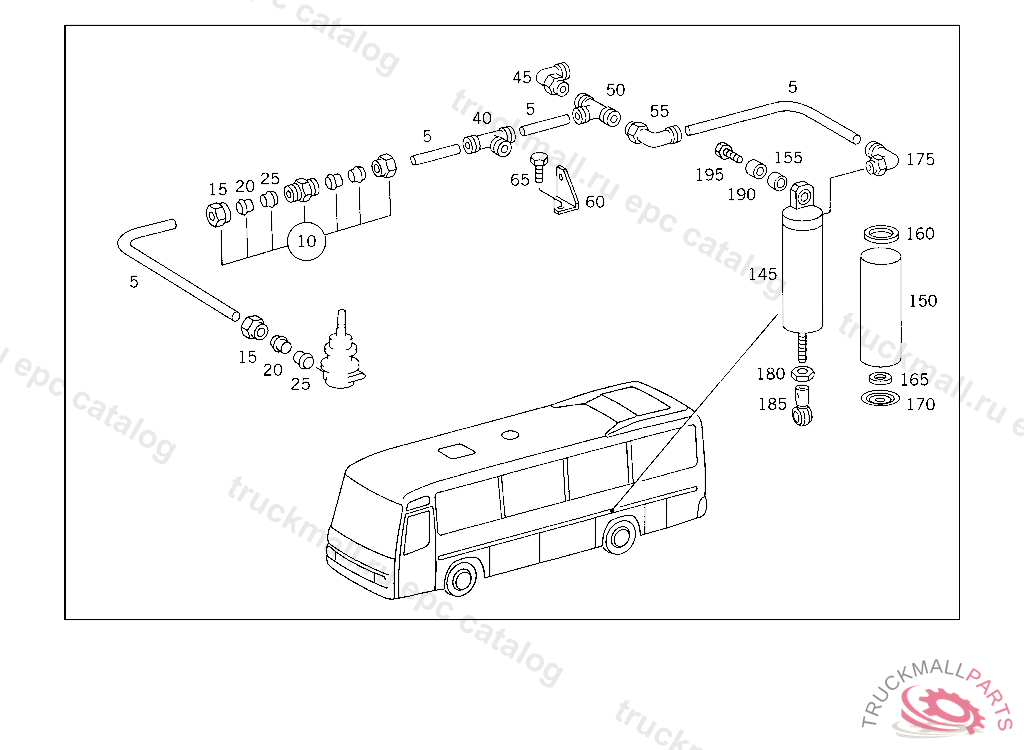

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
15
UNION NUT
20
GLAND , Replaced By: A0019901667
25
SLEEVE LEAK LINE
40
FITTING
45
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
50
T-FITTING. FITTING AT INJECTION PUMP
55
FITTING FROM PUMP TO CYLINDER
55
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
55
FITTING , Replaced By: A0019909871
60
BRACKET FITTING
65
SCREW BRACKET TO CROSS CONNECTION STRUT
65
SCREW , Replaced By: N304017008034
145
CYLINDER REAR AXLE PNEUMATIC SUSPENSION
150
CUP
155
MOUNTING
160
SEAL RING
165
SEAL RING
170
SEAL RING
175
ELBOW FITTING POWER CYLINDER
180
NUT
180
NUT , Replaced By: N304035008001
185
BALL SOCKET PULL ROD TO LEVER
190
BUSHING RETURN LINE TO BRACKET
195
SCREW VALVE TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
