Главная
›
Mercedes
›
BUS
›
BT-25
›
698.400
›

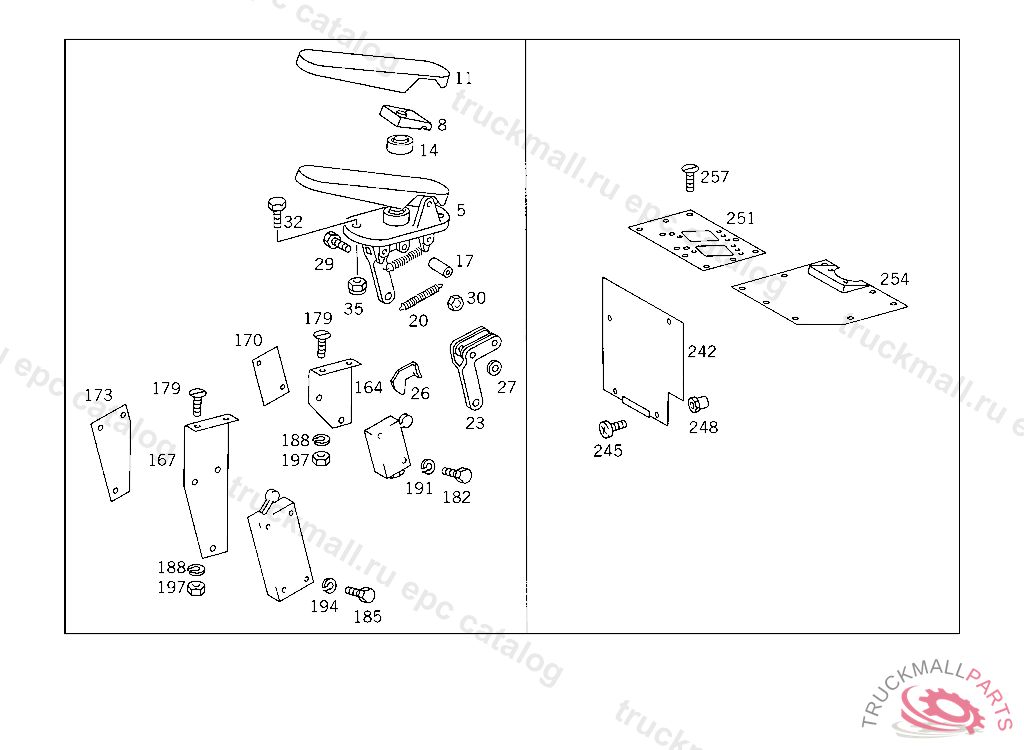

29 PEDAL ASSEMBLY
›
060 BRAKE PEDAL ASSEMBLY IL. 1
Mercedes N000933004077 -
BT-25 698.400
29 PEDAL ASSEMBLY - 060 BRAKE PEDAL ASSEMBLY IL. 1
Поз.
Артикул
Описание
5
A0002920001
PEDAL BRAKE
8
A0002920049
BEARING BRAKE PEDAL
11
A0002920082
PAD BRAKE PEDAL
14
A0002920097
BOOT BRAKE PEDAL
17
A0002920050
BUSHING REVERSING LEVER
20
A0002920087
SPRING BRAKE PEDAL RESET
23
A6982923631
26
A6982923620
32
N000933008153
SCREW , Replaced By: N304017008034
35
N913004008004
NUT , Replaced By: N913004008001
164
A6985453640
170
A6985453782
179
N000963006031
SCREW COVER TO BATTERY SUPPORT M 6X16
182
N000933004077
SCREW AIR CLEANER TO BRACKET M 4X45
188
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
191
N912004004102
LOCK WASHER T-FITTING TO BRACKET
197
N000934006007
NUT BALL PIVOT TO LEVER
