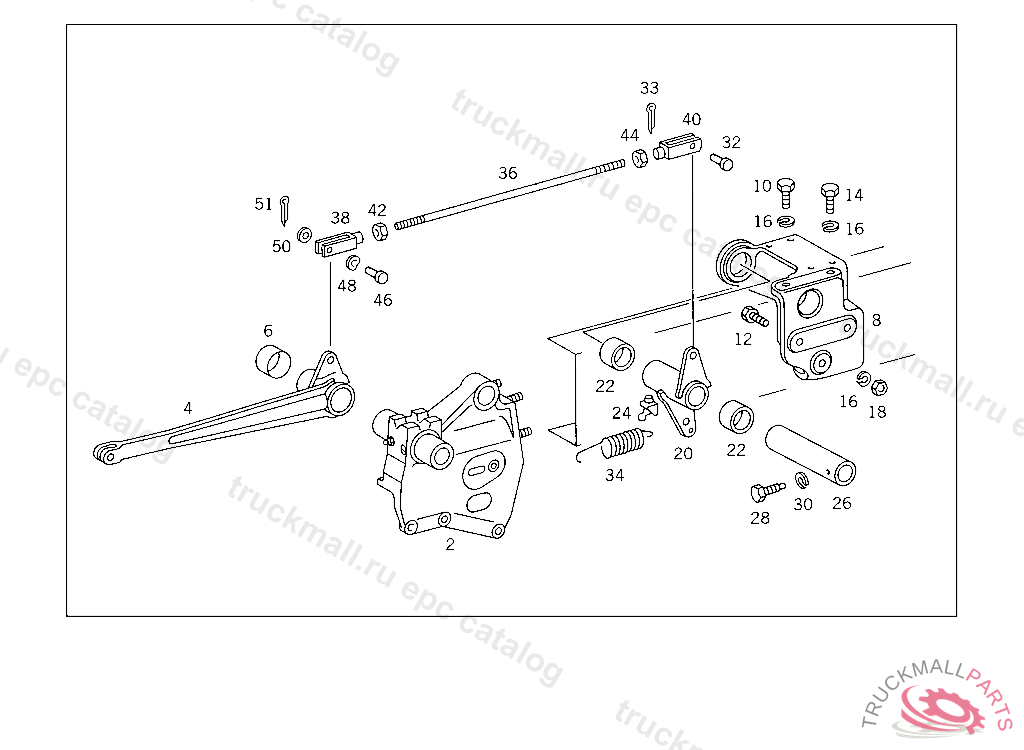

Поз.
Артикул
Описание
2
BEARING BRACKET PEDAL BEARING
4
PEDAL
6
BUSHING
6
BUSHING
8
BEARING BRACKET REAR
10
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
12
SCREW REAR EXHAUST PIPE TO MUFFLER
14
SCREW BRACKET TO FRAME SIDE MEMBER
16
LOCK WASHER , Replaced By: N912004010102
18
NUT BRACKET TO FRAME
20
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEM
22
BUSHING
24
GREASE NIPPLE PROTECTIVE TUBE
26
BEARING TUBE
28
SCREW
30
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
32
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
33
COTTER PIN PISTON ROD TO BRAKE PEDAL
34
SPRING (RELEASE SPRING)
34
SPRING , Replaced By: A3649937010
36
PULL ROD
38
YOKE , Replaced By: A0009961501
38
YOKE PULL ROD TO LEVER
40
YOKE , USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
40
YOKE , Replaced By: A3419967001
42
NUT BRACKET TO FRAME
44
NUT L.H. THREAD
46
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
48
SPRING WASHER PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER
50
WASHER , Replaced By: N000433010510
51
COTTER PIN SHIFTING ROD TO BRACKET
999
CLAMP , Replaced By: A0003380645
999
VALVE HAND BRAKE VALVE WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
DRAG LINK END
999
BALL SOCKET TOP
999
BALL SOCKET BOTTOM
999
SPRING
999
DUST CAP
999
SWITCH RANGE SELECTOR LOCK
999
VALVE (RELAY VALVE) WABCO
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
VALVE , Replaced By: A0024314006
999
SPHERICAL RING REAR DISC WHEEL
999
DRAG LINK , Replaced By: A3274601605
999
BALL PIVOT
999
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
999
BRACKET LEFT
999
BRACKET RIGHT
999
PIPE ,A 069204
999
DISC WHEEL (8-HOLE RIM), USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
SIDE RINGTO 341 400 03 02,341 400 05 02, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
SHOULDER RINGTO 341 400 71 02,341 400 72 02
999
RESERVOIR"1,2",A 069205A 90243
999
DRAG LINK , USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
DRAG LINK , Replaced By: A3454608605
999
HOSE , Replaced By: A3769978182
999
BRACKET RELEASE SPRING
999
STOP BRAKE PEDAL
999
VALVE , Replaced By: A0004320807
999
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
999
SPRING TWO-CIRCUIT BRAKE VALVE
999
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
ROD PISTON ROD
999
YOKE PISTON ROD
999
NUT
