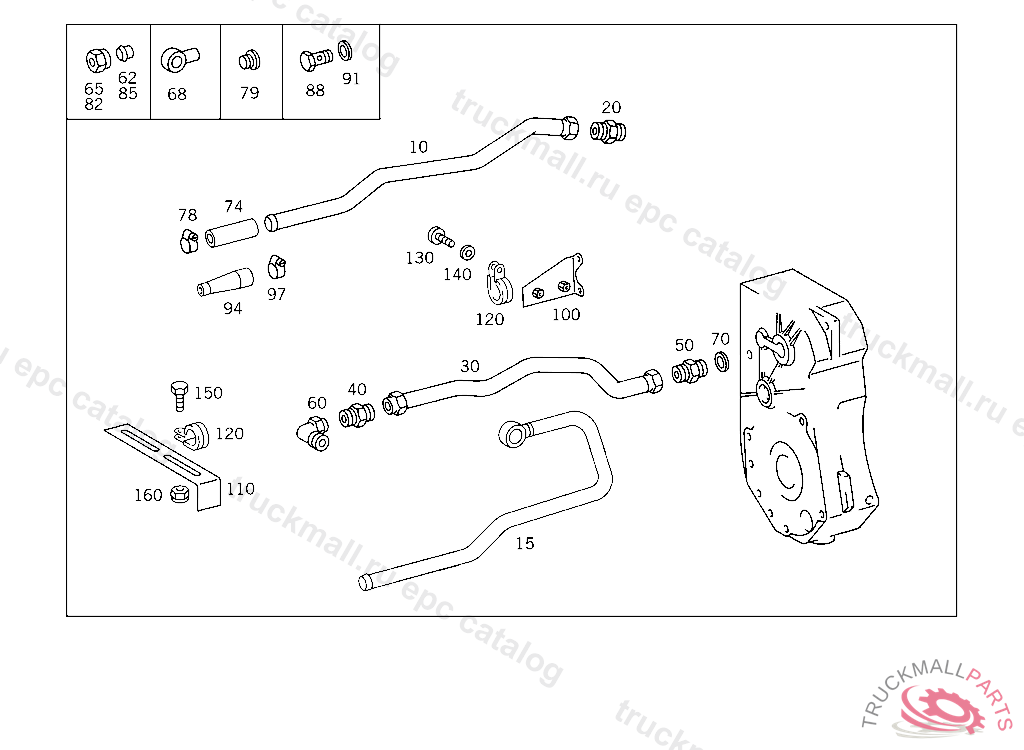

Поз.
Артикул
Описание
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,TOP
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM TRANSMISSION TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,TOP
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER,216648
10
PIPE FROM OIL PUMP TO OIL COOLER
10
PIPE FROM OIL PUMP TO OIL COOLER,216649
10
PIPE FROM OIL PUMP TO OIL COOLER,216649
10
PIPE , Replaced By: A6522601585
10
PIPE , Replaced By: A6522601785
10
PIPE ,216649 FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 010876, Replaced By: A6522605085
10
PIPE , Replaced By: A6522601985
10
PIPE , Replaced By: A6522601785
10
PIPE , Replaced By: A6522607185
10
PIPE , Replaced By: A6522607085
10
PIPE FROM OIL PUMP TO OIL COOLER,216649
15
PIPE FROM OIL PUMP TO OIL COOLER
15
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,TOP
15
PIPE FROM OIL PUMP TO OIL COOLER
20
CONNECTION FITTING LINE CONNECTIONS
20
CONNECTION FITTING , Replaced By: N003902018002
30
PIPE , Replaced By: A6522602585
30
PIPE , Replaced By: A6522602785
30
PIPE , Replaced By: A6522602985
30
PIPE , Replaced By: A6522607285
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216649
30
PIPE FEED, OIL COOLER,K 131866
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,BOTTOM
30
OIL PIPE OIL PIPE TO TRANSMISSION CASE
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216649
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216649
30
OIL PIPE OIL PIPE TO TRANSMISSION CASE
30
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,TOP
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216649
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216649
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,TOP
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION,216648
30
PIPE FROM OIL COOLER TO TRANSMISSION CASE REAR PART,TOP
40
CONNECTION FITTING LINE CONNECTIONS
40
CONNECTION FITTING , Replaced By: N003902018002
50
FITTING OIL LINE CONNECTION
50
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
50
FITTING OIL LINE TO TRANSMISSION
50
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
60
FITTING OIL LINE CONNECTION
60
FITTING , Replaced By: N003952015100
62
GLAND LINE CONNECTION
62
CUTTING RING. GLAND LINE CONNECTION
65
NUT. UNION NUT LINE CONNECTION
65
UNION NUT OIL PUMP
65
UNION NUT LINE CONNECTION
68
BANJO UNION
70
SEAL RING SOLENOID VALVE A 18X24
70
SEAL RING
74
HOSE LINE CONNECTIONS 350 MM, TO BE ADAPTED DURING ASSEMBLY
74
HOSE OIL LINE CONNECTION,RETURN FLOW
74
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 968464, Replaced By: A6559972282
74
HOSE FROM TRANSMISSION TO ENGINE,5 746785
74
HOSE OIL PIPE TO TRANSMISSION CASE, NOT USED
78
UNION NUT OIL PUMP
78
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
78
CLAMP HOSE TO FITTING AND TO OIL TANK
78
CLAMP , Replaced By: N000000000667
78
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
79
SCREW PLUG HOUSING,BOTTOM, Replaced By: N000908018011
79
SCREW PLUG BELL HOUSING
79
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
82
UNION NUT LINE CONNECTION
85
GLAND LINE CONNECTION
88
HOLLOW SCREW RESERVOIR TO SUPPORT
91
SEAL RING SOLENOID VALVE A 18X24
94
HOSE FROM TRANSMISSION TO ENGINE,5 746785
97
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
97
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
97
CLAMP HOSE TO FITTING AND TO OIL TANK
97
CLAMP , Replaced By: N000000000667
100
BRACKET OIL LINE TO TRANSMISSION
100
BRACKET BELL HOUSING
100
BRACKET OIL LINE
100
BRACKET OIL LINE TO TRANSMISSION
110
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
110
BRACKET , Replaced By: A3875015820
110
BRACKET , Replaced By: A3524290740
120
CLAMP COOLING WATER LINE TO FIRE WALL
120
CLAMP FEED LINE TO THERMOSTAT
120
CLAMP DELIVERY AND SUCTION LINES TO STEERING
130
SCREW CABLE TO ALTERNATOR
130
SCREW CLAMP MOUNTING M 6X16
130
SCREW , Replaced By: N000000001146
140
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
140
WASHER COMPRESSED AIR LINE TO BRACKET
150
SCREW LEVER TO ENGINE CONTROL SHAFT
150
SCREW COVER PLATE TO BRACKET
150
SCREW , Replaced By: N910105006023
150
SCREW AT FILTER BRACKET
160
NUT , Replaced By: N913004006001
160
NUT AT FILTER BRACKET
160
NUT PUMP TO BRACKET
999
ANGLE LINE MOUNTING
999
PIPE SPINDLE TO HOUSING, FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 113214
999
PIPE SPINDLE TO HOUSING, FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 113214
999
HOSE OIL COOLER FEED AND RETURN
999
PIPE (OIL LINE) FROM OIL COOLER TO TRANSMISSION
999
PIPE (OIL LINE) FROM TRANSMISSION TO HOSE FEED
999
PIPE (OIL LINE) FROM TRANSMISSION TO HOSE RETURN
999
CLAMP CABLE HARNESS MOUNTING
999
CLAMP , Replaced By: N000000001045
