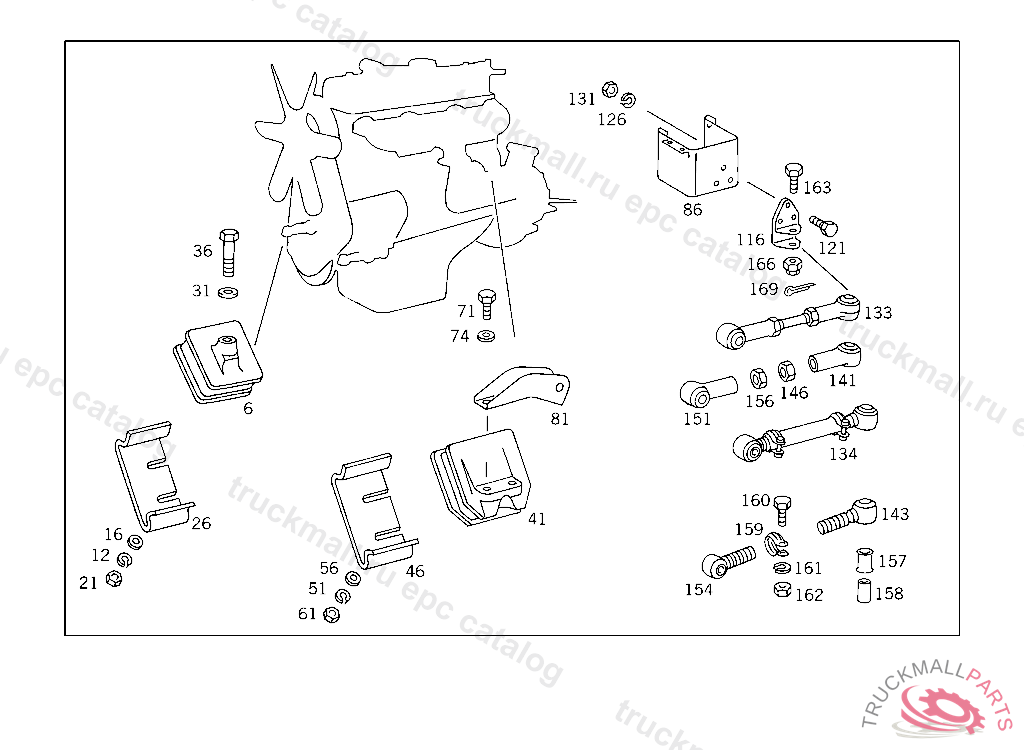

Поз.
Артикул
Описание
6
RUBBER MOUNTING ENGINE FRONT SUSPENSION
12
LOCK WASHER BRACKET TO SUPPORTING ARM
16
WASHER RADIATOR PROTECTIVE GRILLE TO ANGLE
21
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
26
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
31
WASHER CONSOLE TO FRAME
36
SCREW SUPPORTING ARM TO FRONT RUBBER MOUNTING
41
RUBBER MOUNTING
41
RUBBER MOUNTING
46
ENGINE STAY RUBBER MOUNTING TO ENGINE REAR SUPPORT
51
LOCK WASHER BRACKET TO SUPPORTING ARM
56
WASHER RADIATOR PROTECTIVE GRILLE TO ANGLE
61
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
71
SCREW BRACKET TO LEFT SIDE MEMBER
71
SCREW , Replaced By: A9429901304
74
WASHER CROSS MEMBER TO SUPPORT
81
BEARING BRACKET
86
CONSOLE ENGINE ALONGSIDE FIXING,A 070204
116
BEARING BRACKET
121
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
126
LOCK WASHER BRACKET TO SUPPORTING ARM
131
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
133
ROD , Replaced By: A3452407125
134
RODTO 352 240 02 25
134
ROD
141
ROD ENDTO 352 240 02 25
143
ROD ENDTO 345 240 71 25
146
NUT
151
ROD ENDTO 352 240 02 25
154
ROD ENDTO 345 240 71 25
156
NUT L.H. THREAD TO 352 240 02 25
157
RUBBER MOUNTINGTO 345 240 71 25
158
BUSHINGTO 345 240 71 25,A 070204
159
CLAMPTO 345 240 71 25
160
SCREW COVERING TO BRACKET
161
LOCK WASHER TAIL LAMP TO BRACKET
162
NUT COVER PLATE
163
SCREW PULL ROD TO BEARING BRACKET
166
NUT PULL ROD TO BEARING BRACKET
169
COTTER PIN ,A 042212
