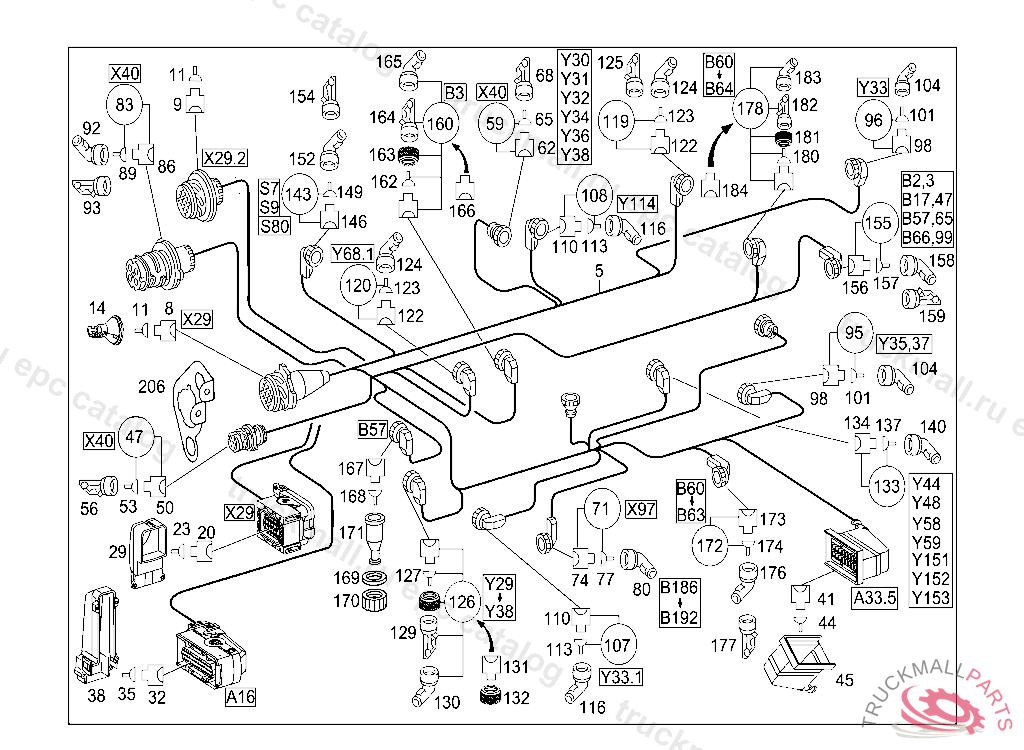

Поз.
Артикул
Описание
5
CABLE HARNESSEPS3+R115HV+VG1700/2400-3W2 GANG
5
CABLE HARNESSEPS3+EAS+NMV+VG1700/2400-3W2 GANG
5
CABLE HARNESSMPII, HPS2+WSK
5
CABLE HARNESSMPII,HPSII+NMV+GV1/2+NK7
5
CABLE HARNESSMPII, EAS II+VOITH
5
CABLE HARNESS TRANSMISSION EPS + WSK
5
CABLE HARNESSMPII, HPS+WSK
5
CABLE HARNESS TRANSMISSION EAS + WSK
5
CABLE HARNESSEPS3+VOITH R115HV+2GG VG, AUTOMAT.
5
CABLE HARNESS EPS LESS NMV
5
CABLE HARNESSMPII, HPS+NMV+2GG. VG
5
CABLE HARNESSEPS3+EAS+NMV
5
CABLE HARNESSEPS3+NMV+VG1700/2400-3W 2 GANG
5
CABLE HARNESS EAS LESS NMV EAS+1-G VG, EPS+2-G VG
5
CABLE HARNESSEPS2/EAS+NMV+VOITH
5
CABLE HARNESSMPII, EPS III + R115HV
5
CABLE HARNESSHPSII+NMV
5
CABLE HARNESS EAS OR EPS LESS NMV WITH RETARDER 1-G VG/2-G VG + TELMA
5
CABLE HARNESSMPII,HPSII+R115HV
5
CABLE HARNESSEPS3+EAS+VG1700/2400 3W 2-GANG
5
CABLE HARNESSMPII, EPS III+TELMA
5
ELECTRICAL WIRING HARNESSESP3 EAS 2+ TELMA MP2
5
CABLE HARNESSHPSII
5
CABLE HARNESSMPII,HPSII+2GG VG
5
CABLE HARNESSEPS3+EAS+R115HV+VG1700/2400-3W+2G+NMV
5
CABLE HARNESSEAS II+NMV+ 2GG VG
5
CABLE HARNESSEAS II+NMV
5
CABLE HARNESSEPS III+NMV+2GG VG
5
CABLE HARNESSEAS II
5
CABLE HARNESSEAS II+2-G VG
5
CABLE HARNESSEPS3+R115HV+VG1700/2400-3W+2GANG+NMV
5
CABLE HARNESSEPS3+EAS+R115HV+NMV
5
CABLE HARNESSEPS III
5
CABLE HARNESSMPS/HPS+VOITH R115HV
5
CABLE HARNESSEPS3+R115HV+VG1700/2400-3W+2GANG+NMV
5
CABLE HARNESSEPS3+VOITH R115HV+NMV, AUTOMAT.
5
CABLE HARNESS EPS LESS NMV
5
CABLE HARNESSEPS3+EAS+FOCAL
5
ELECTRICAL WIRING HARNESSMPII, HPS+VOITH
5
CABLE HARNESSEAS II+VOITH+2GG. VG
5
CABLE HARNESSMPII, HPS+WSK
5
CABLE HARNESSEPS3+NMV+VG1700/2400-3W 2 GANG
5
CABLE HARNESS MPS WITH NMV
5
CABLE HARNESSMPII,HPSII
5
CABLE HARNESSEPS III+NMV+VOITH
5
CABLE HARNESSMPII, HPS+NMV
5
CABLE HARNESSEPS3+VOITH R115HV+NMV+EAS
5
CABLE HARNESSEAS III
5
CABLE HARNESSEPS3+VOITH R115HV
5
CABLE HARNESSMPII, HPSII+R115HV+2GG VG
5
CABLE HARNESS EPS LESS NMV WITH RETARDER TELMA
5
CABLE HARNESSEAS II
5
CABLE HARNESSMPII, HPS+NMV+VOITH
5
CABLE HARNESSMPII,HPSII+NMV+NK7
5
CABLE HARNESSMPII, HPS+VOITH+ 2GG VG
5
CABLE HARNESSMPII, HPS+WSK+2GG. VG
5
CABLE HARNESSMPII, HPSII+NMV+VOITH
5
CABLE HARNESSMPII, EPS III+VOITH
5
CABLE HARNESSEPS III+2GG. VG
5
CABLE HARNESS EAS WITH TRANSFER CASE EAS 2-G VG
5
CABLE HARNESSEPS3+VOITH R115HV+2GG VG
5
CABLE HARNESSEPS3+EAS+R115HV
5
CABLE HARNESSMPII, HPS
5
CABLE HARNESS MPS LESS NMV LESS WSK
5
CABLE HARNESS EPS WITH NMV
5
CABLE HARNESSHPSII+R115HV
5
CABLE HARNESS EPS WITH NMV
5
CABLE HARNESSEPS III+VOITH+2GG. VG
5
CABLE HARNESSEAS II+NMV+VOITH
5
CABLE HARNESSEPS3+EAS+NMV+VG1700/2400-3W2 GANG
5
CABLE HARNESSEPS + VOITH R115HV
5
ELECTRICAL WIRING HARNESSMPII,HPSII+NMV+GV1/2
5
CABLE HARNESSEPS+2-G VG, EAS+1-G VG
5
CABLE HARNESSMPII, HPSII+NMV+VG1/2
5
CABLE HARNESSMPII, EASII+TELMA
5
CABLE HARNESSMPII, HPS+VOITH R115HV
5
CABLE HARNESSEAS II+2GG. VG
5
CABLE HARNESS EAS WITH TRANSFER CASE EAS+NMV+2G VG
5
CABLE HARNESSMPII, HPSII+TELMA FOCAL
5
CABLE HARNESSHPSII+NMV
5
CABLE HARNESSEPS3+VG1700/2400 3W 2-GANG
5
CABLE HARNESSEPS III+NMV
5
CABLE HARNESSEPS3+VOITH R115HV+NMV+2GG VG,AUTOM.
5
CABLE HARNESSMPII,EAS II+VOITH
5
CABLE HARNESSEPS III+NMV
5
CABLE HARNESSMPII,HPSII+NMV
5
CABLE HARNESSMPII,HPSII+NMV+BA1
5
CABLE HARNESSMPII, EPS III+VOITH
5
CABLE HARNESSHPSII+NMV
5
ELECTRICAL WIRING HARNESS P.T.O. NZ2+NMV+NK7
5
CABLE HARNESSEPS3+VOITH R115HV+NMV
5
CABLE HARNESSMPII,HPSII+NMV+NK7+BAI
5
CABLE HARNESS MPS LESS NMV WITH WSK
5
CABLE HARNESS EPS LESS NMV WITH RETARDER TELMA
5
CABLE HARNESSEPS III
5
CABLE HARNESSEPS3+EAS
5
CABLE HARNESS FOR EPS
5
CABLE HARNESSEPS3+VOITH R115HV+NMV
5
CABLE HARNESSEPS3+EAS+R115HV+VG1700/2400-3W
5
CABLE HARNESSMPII, HPS+2GG. VG
5
CABLE HARNESSMPII,HPSII+NMV+GV1/2+BA1
5
CABLE HARNESSMPII, HPS+VOITH+2GG. VG
5
CABLE HARNESSEPS3+EAS+NMV
5
CABLE HARNESSMPII, HPS2+WSK+2GG.VG
5
CABLE HARNESS EAS OR EPS WITH NMV EAS 1-G VG/EPS 2-G VG
8
PLUG HOUSING THIRTY-ONE PIN
9
PLUG
11
LOCK
11
GASKET. BLIND PLUG
11
CONTACT PIN0.5-1.0 MM2
11
CONTACT PIN1.0-2.5 MM2
11
WIRE SEAL GREY 0.5-1.0 MM2
11
CORE BUNDLE SEALING1.0-2.5 MM2
14
BOOT THIRTY-ONE PIN PLUG CONNECTION
20
PIN BUSHING HOUSING ELECTRONICS AGSII, A92, 21PIN
20
PIN BUSHING HOUSING 15-POLE
23
GASKET. BLIND PLUG
23
WIRE SEAL
23
FEMALE CONTACT LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2, PIN 57 - 62
29
BOOTTO A 015 545 91 26
29
BOOT PIN BUSHING HOUSING 15 PIN
32
PIN BUSHING HOUSING CONTROL UNIT A16,46PIN,EPS
35
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2, PIN 01 - 56
35
CORE BUNDLE SEALING1.0-2.5 MM2
38
BOOT PIN BUSHING HOUSING 46 PIN, TO 0185458426
41
PIN BUSHING HOUSING RETARDER CONTROL MODULE A33.5,15PIN,TELMA-HYDRAL
44
WIRE SEAL
44
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
45
CAP
47
PARTS KIT , TO BE ADAPTED DURING ASSEMBLY INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
47
TS SOCKET PARTS KIT. PLUG SOCKET 7-POLE
50
PLUG 7-POLE
53
WIRE SEAL
53
NUT. CLAMPING RING
53
CONTACT PIN0.5-1.0 MM2
53
GASKET. BLIND PLUG
53
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
53
PIN CONTACT1.0-2.5 MM2
56
BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
56
BOOT 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
59
PARTS KIT FUEL GAUGE SENDER UNIT, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLYK 171434
62
PLUG SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT
65
WIRE SEAL GREY 0.5-1.0 MM2
65
CORE BUNDLE SEALING1.0-2.5 MM2
65
CONTACT SPRING. CONTAKT SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT 1.0 - 2.5 MM2
65
ROUND PIN BUSHING0.5-1.0 MM2
65
GASKET. BLIND PLUG
68
BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
71
TS SOCKET PARTS KIT. PARTS KIT PRESSURE SENDER UNIT 7 PIN, TO BE ADAPTED DURING ASSEMBLY
74
SOCKET HOUSING. PLUG SOCKET 7-POLE
77
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
77
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
77
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5.1.0 MM2
77
GASKET. BLIND PLUG
77
WIRE SEAL
80
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
83
PARTS KIT PLUG CONNECTION,TACHOGRAPH SENSOR X36, 4PIN, TO BE ADAPTED DURING ASSEMBLY
86
PLUG HOUSING 4-POLE
89
WIRE SEAL GREY 0.5-1.0 MM2
89
CONTACT PIN0.5-1.0 MM2
89
CORE BUNDLE SEALING1.0-2.5 MM2
89
CONTACT PIN1.0-2.5 MM2
89
GASKET. BLIND PLUG
89
NUT. CLAMPING RING
92
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
93
BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
95
TS SOCKET PARTS KIT. PARTS KIT PRESSURE SENDER UNIT 7 PIN, TO BE ADAPTED DURING ASSEMBLY
96
TS SOCKET PARTS KIT. PARTS KIT PRESSURE SENDER UNIT 7 PIN, TO BE ADAPTED DURING ASSEMBLY
98
SOCKET HOUSING. PLUG SOCKET 7-POLE
101
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
101
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5.1.0 MM2
101
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
101
GASKET. BLIND PLUG
101
WIRE SEAL
104
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
104
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5
107
TS SOCKET PARTS KIT. PARTS KIT PRESSURE SENDER UNIT 7 PIN, TO BE ADAPTED DURING ASSEMBLY
108
TS SOCKET PARTS KIT. PARTS KIT PRESSURE SENDER UNIT 7 PIN, TO BE ADAPTED DURING ASSEMBLY
110
SOCKET HOUSING. PLUG SOCKET 7-POLE
113
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
113
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5.1.0 MM2
113
ROUND PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
113
GASKET. BLIND PLUG
113
WIRE SEAL
116
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
116
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5
116
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
119
PARTS KIT FUEL GAUGE SENDER UNIT, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLYK 171434
120
PARTS KIT FUEL GAUGE SENDER UNIT, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLYK 171434
122
PLUG SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT
123
WIRE SEAL GREY 0.5-1.0 MM2
123
CORE BUNDLE SEALING1.0-2.5 MM2
123
ROUND PIN BUSHING0.5-1.0 MM2
123
GASKET. BLIND PLUG
123
CONTACT SPRING. CONTAKT SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT 1.0 - 2.5 MM2
124
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
124
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5
124
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
125
BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
126
PLUG SOCKET (PARTS KIT),2-PIN.SEP.INSULATION OF LEADS FOR INS.AND CORRUGATED HOSE M 27X1
