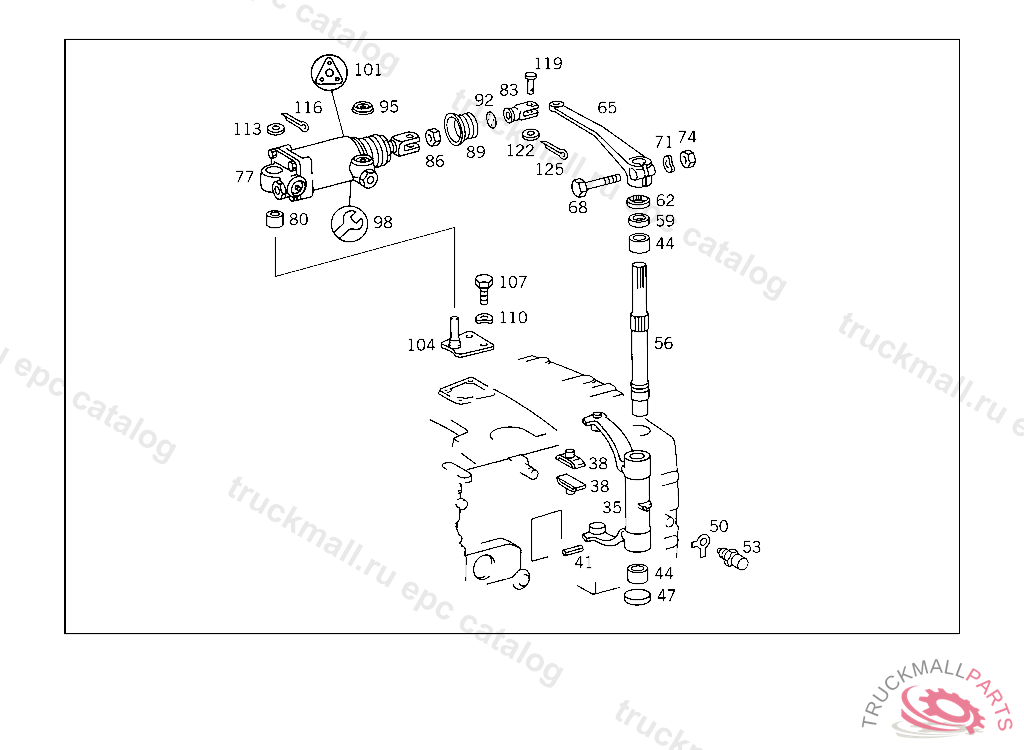

Поз.
Артикул
Описание
35
SHIFTING FORK GEAR CLUSTER SHIFT
38
SLIDE SHIFTING FORK
41
CLAMPING SLEEVE SHIFTING FORK TO SHIFTING SHAFT
44
BUSHING SHIFTING FORK
47
EXPANSION PLUG SHIFTING FORK
47
EXPANSION PLUG , Replaced By: N000443040002
50
LOCK PLATE SHIFT CASE
53
DETENT SHIFTING SHAFT DETENT
53
DETENT , Replaced By: A0002601973
56
SHAFT (SHIFTING SHAFT)
59
SEAL RING SHIFTING SHAFT,TOP
62
SEAL RING SHIFTING SHAFT,TOP
65
SHIFT LEVER PLANETARY GEAR CLUSTER
68
SCREW VALVE TO BRACKET M 8X55
68
SCREW , Replaced By: N304017008043
71
SPRING WASHER , Replaced By: N000137008212
71
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
74
NUT
74
NUT , Replaced By: N304032008006
77
SHIFTING CYLINDER ,131098,5 S 110 GPA131454,5 K 110 GPA, Replaced By: A0002604663
77
SHIFTING CYLINDER ADDITIONAL GEAR CLUSTER WESTINGHOUSE
80
BUSHING SHIFTING CYLINDER
80
BUSHING , Replaced By: A0002684950
83
YOKE SHIFTING CYLINDER
86
NUT RELEASE BEARING LUBRICATION
86
NUT , Replaced By: N308675014002
86
NUT , Replaced By: N308675014000
89
BOOT SHIFTING CYLINDER
89
BOOT , Replaced By: A0002640796
89
BOOT , Replaced By: A0002640596
92
STRAINER SHIFTING CYLINDER
95
COVER
98
REPAIR KIT SHIFTING CYLINDER TO 000 260 39 63,003529,5 S 90 GPA001872,5 K 90 GPA
101
REPAIR KIT , Replaced By: A0002603968
101
GASKET KIT SHIFTING CYLINDER
104
BRACKET SHIFTING CYLINDER TO SHIFT LEVER
107
SCREW , Replaced By: N304017008016
107
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
110
SPRING WASHER , Replaced By: N000137008212
113
WASHER , Replaced By: N000125008443
113
WASHER EXHAUST MUFFLER TO STRAP
116
COTTER PIN STRAP TO SUPPORT
119
PIN BRACKET TO SHIFTING CYLINDER
122
WASHER
125
COTTER PIN STRAP TO SUPPORT
