Mercedes N000933010145 - SCHRAUBE DIN 933-M10

4 S-150 GP+WSK 400+ N 70/1 C 717.349

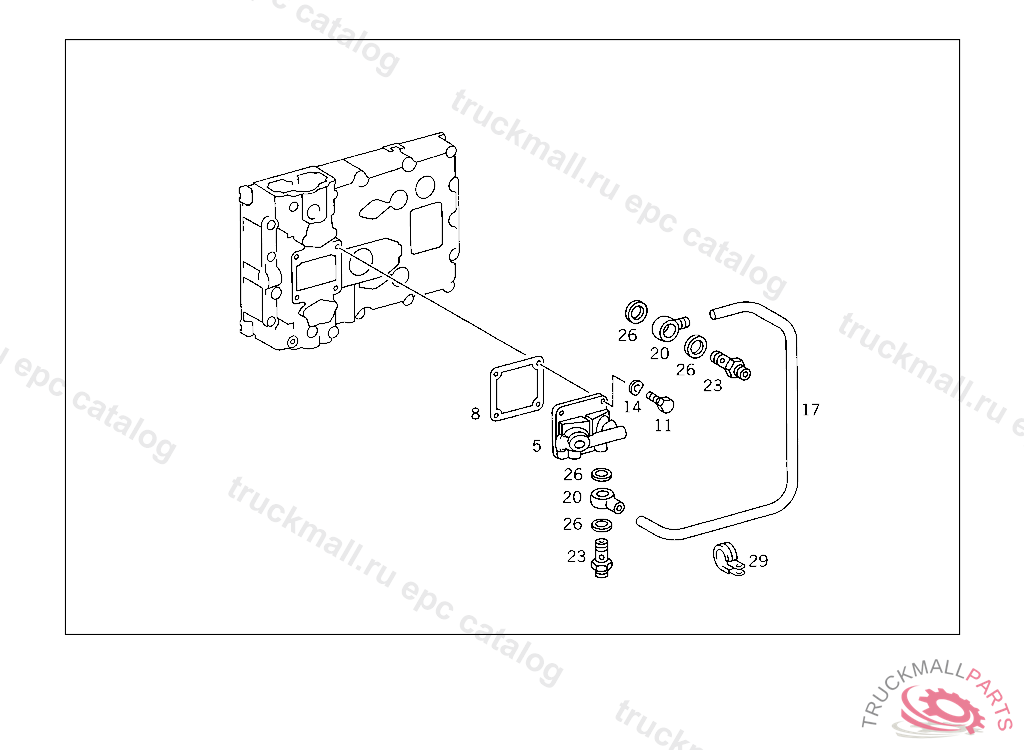

26 TRANSMISSION - 400 SHIFT VALVES,SWITCHES,COMPRESSED AIR LINES

Поз.
Артикул
Описание
5
A0012600257
VALVE (CONTROL VALVE),GROUP SHIFT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
A0002682580
GASKET , Replaced By: A0002686480
8
A0002686480
GASKET 3/2-WAY VALVE
11
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
14
N000137010201
SPRING WASHER STEERING COLUMN BRACKET TO CAB
17
A0009979052
HOSE FROM 3/2-WAY VALVE TO SHIFTING CYLINDER, ORDER BY THE METER
20
A0009908988
BANJO UNION
23
N915039008202
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
26
N007603012405
SEAL RING LINE CONNECTION
29
A0019952101
CLAMP HOSE TO TRANSMISSION CASE
